Product Information

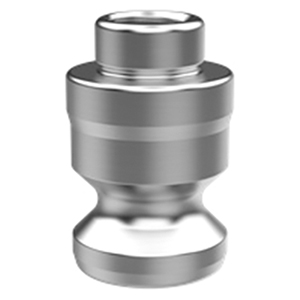

Zero-Point Pull Studs for use in quick-change workholding.ZPPS are manufactured from high-quality Stainless Steel then Heat Treated to achieve optimum hardness to resist wear and ensure long life and high accuracy. Zero-Point Pull Studs family is compatible with ROEMHELD PC 80 Vise and Competitor Zero-Point systems requiring studs with 52mm (16mm pin diameter) or 96mm (20mm pin diameter). Detailed Product Conversions are available below. Made in the USA..
Material Specifications
| Item | Material | Head Tread | Stud |
| Pull Stud | 17-4PH | RC 40-45 | Passivated |
| Set Screw | Alloy Steel | - | Black Oxide |
Product Specifications
| Manufacturer Part Number | CLM-20-ZPPS-S |
| Product Type | 5-Axis Pull Stud |
