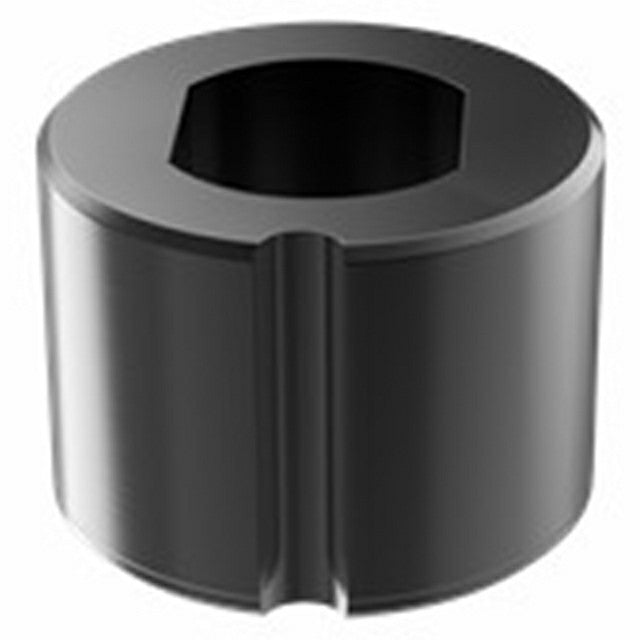

Slotted Locator Bushings
can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction. Made in USA.
Application Information
A standard press-fit P bushing (for primary location) and a Slotted Locator Bushing (for secondary location) are used with L Pins to align two holes without binding.
Installation
To install, first drill and ream hole for roll pin (furnished), then bore large bushing hole for .0003-.0005" press fit. Press in bushing and roll pin simultaneously for accurate orientation.
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Bushing | 440C stainless steel | Rc 57-69 | Passivated | Yes | Yes |
| Roll Pin | 300-series stainless steel | - | N/A | Yes | Yes |
Parts Specification
| Pin Diameter (mm) | A (mm) | B Diameter (mm) | C Diameter (mm) | L (mm) | M Diameter (mm) | N (mm) |
| 20mm | 20.003 / 20.028mm | 22mm | 36mm | 19mm | 5mm | 8mm |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
