Extruded Hand Knob

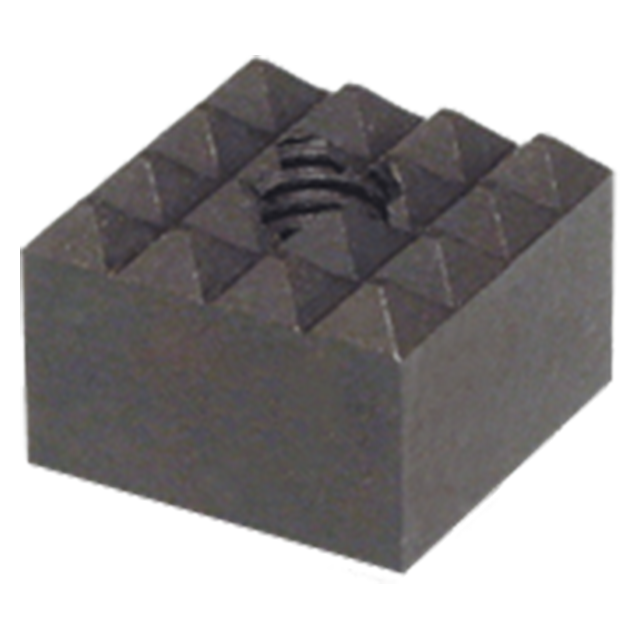

Square Grippers are similar to Round Grippers, but their shape is useful when positive resistance to rotation is required (because they can be mounted against a step to prevent rotation). These serrated grippers are hard, replaceable inserts that provide additional holding force and/or wear resistance when installed in a fixture. They are designed to slightly penetrate the workpiece to significantly increase gripping force, rather than relying on static friction alone. Made in USA.
Application Information
Versatile knobs with an enlarged head for pulling, pushing, or lifting. Made in USA.
Installation
These tapped Square Grippers can be fastened from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. When grippers are installed in a hole, they should project 50 to 100% of serration height for maximum effectiveness (serration height is .047" on grippers with .094" x 90° serrations, .062" on grippers with .125" x 90° serrations).
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| M-2 Tool Steel | Heat Treated Rc 60-62 | Black Oxide | Yes | Yes |
Parts Specification
| A (mm) | B (mm) | C Thread | Thread Pitch (mm) | Serrations | Serration Dimensions (mm) |
| 20mm | 10mm | M5 | 0.8mm | FINE | 3.2x90°mm |
