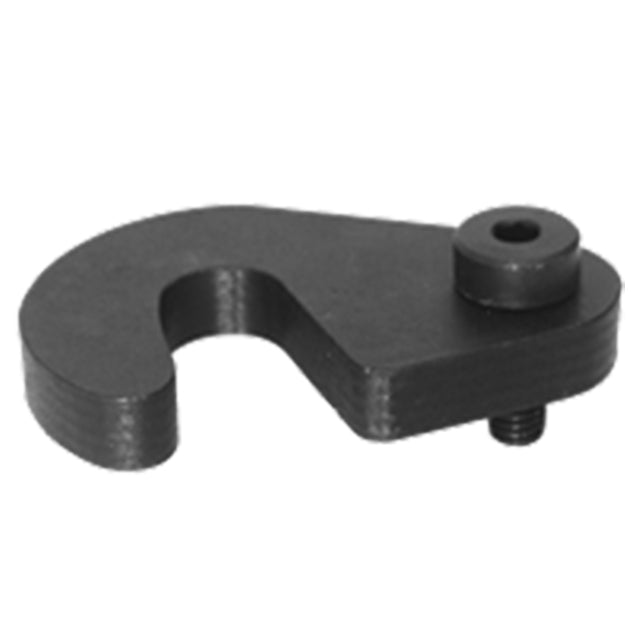

Swing C Washers
Permanently attached C washer that swings out of the way for clear loading. Can be reversed to swing into position either clockwise or counterclockwise.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Washer | 1018 Steel | Carburized-hardened | Black Oxide | Yes | Yes |
| Shoulder Screw | Alloy Steel | Heat Treated Rx 32-43 | Black Oxide | Yes | Yes |
Parts Specification
| Stud Size | A (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) | G Diameter (mm) | H Thread | Thread Pitch (mm) |
| M12 | 25.5mm | 12.5mm | 32mm | 9.5mm | 13.5mm | 10mm | M8 | 1.25mm |
