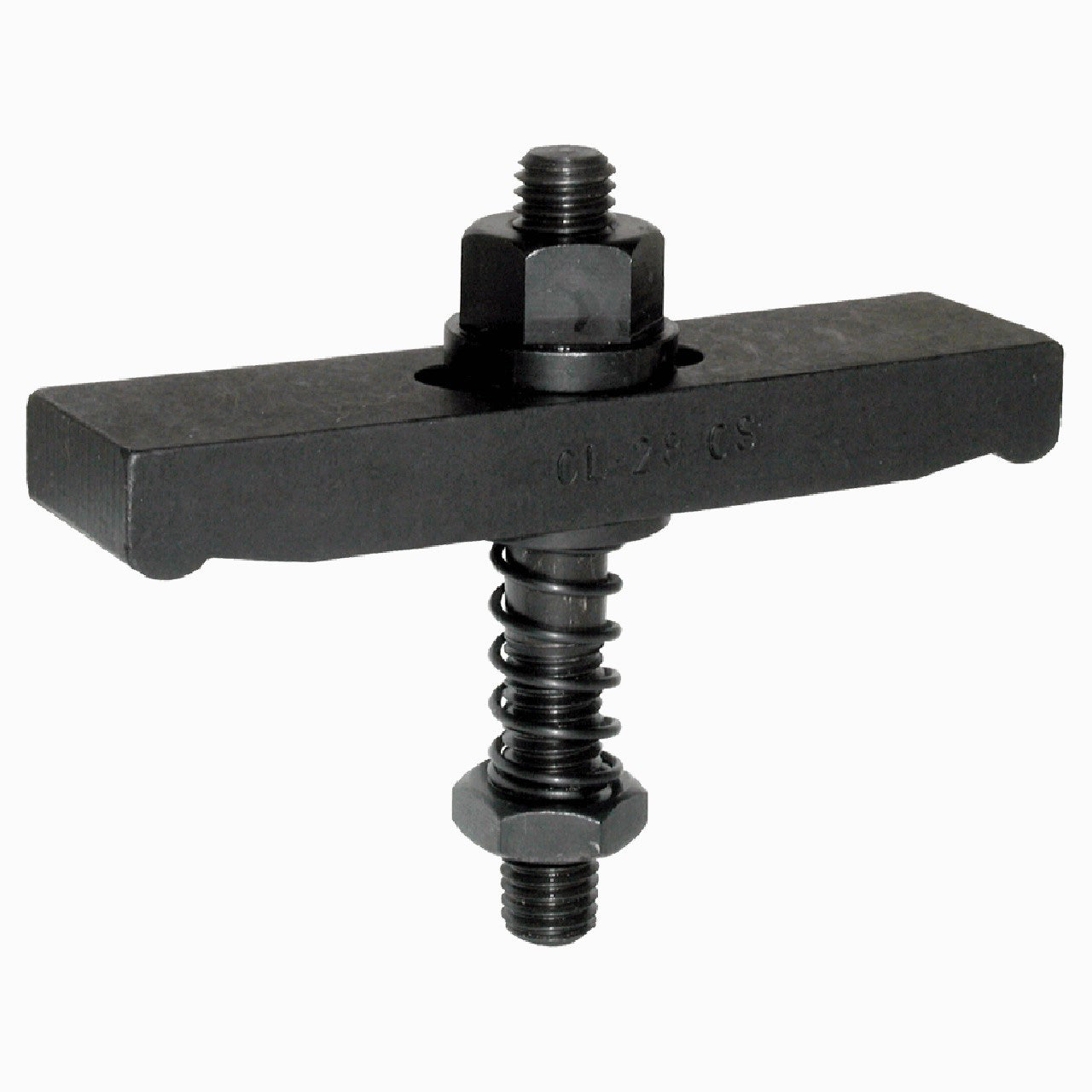

Double-End Clamp Strap Assembly
Heavy-duty steel clamp strap with two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading. Standard radius nose at each end provides firm workpiece contact. Made in USA.
Application Information
Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.
Assembly with Spherical Nut & Washer (-1)
This clamp assembly includes a Double-End Clamp Strap plus the following Items:
Spherical Nut and Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Assembly with Flange Nut (-2)
This clamp assembly includes a Double-End Gooseneck Clamp Strap plus the following Items:
Flange Nut
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Assembly with Hand Knob & Spherical Washer (-4)
This clamp assembly includes a Double-End Gooseneck Clamp Strap plus the following Items:
Hand Knob
Spherical Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Assembly with Acorn Nut & Spherical Washer (-5)
This clamp assembly includes a Double-End Gooseneck Clamp Strap plus the following Items:
Acorn Nut
Spherical Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Assembly with Bar Knob & Spherical Washer (-6)
This clamp assembly includes a Double-End Clamp Strap plus the following Items:
Bar Knob
Spherical Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Assembly with Cam Handle & Spherical Washer (-7)
This clamp assembly includes a Double-End Clamp Strap plus the following Items:
Cam Handle
Spherical Washer
Eye Bolt
Clevis Pin
Clamp Spring
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | RoHS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | ✔ | ✔ |
Parts Specification
| Thread Size | Thread Pitch (mm) | A (mm) | B (mm) | C (mm) | Clamp Strap | Clamp Spring | Flat Washer | Clamping Stud | Jam Nut | Flange Nut |
| M8 | 1.25mm | 76mm | 19mm | 12.5mm | CL-23D-CS | CL-6-SPG | CL-14-FW | CLM-8x80-STUD | CLM-8-JN | CLM-8-FN |
