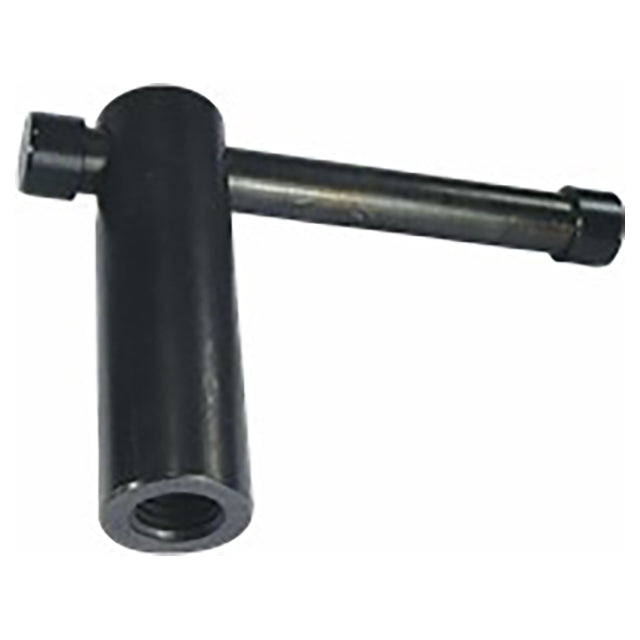

Bar-Handle Nut
Extension nut with a deep tapped hole and a sliding bar handle for excellent leverage. The sliding bar can be moved to any position for convenient tightening, and is held in place by light spring force. Made in USA.
Application Information
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Sliding Handle | 1215 Steel | Yes | Black Oxide | Yes | Yes |
| Spring | 300-Series Stainless | Yes | Yes | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) | F Diameter (mm) | G Diameter (mm) | H (mm) | J (mm) |
| M16 | 2mm | 35mm | 85mm | 25mm | 120mm | 12.5mm | 16mm | 10mm | 10mm |
