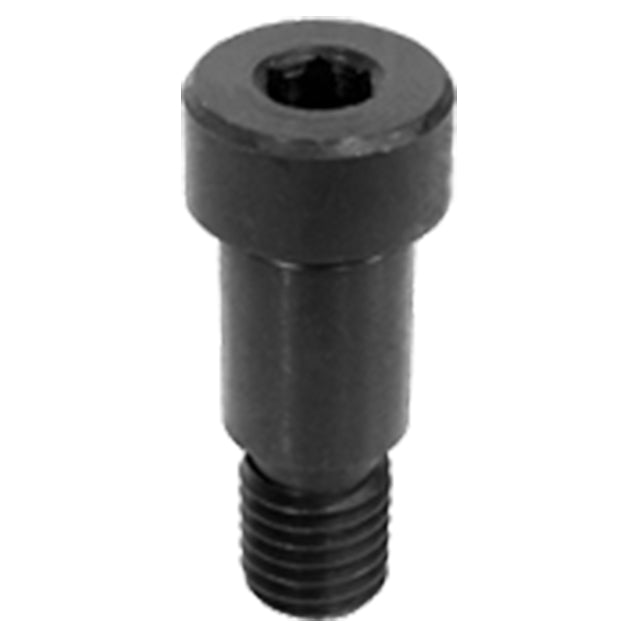

Shoulder Screws
Precision close-tolerance Shoulder Screw. The shoulder diameter is ground to a closer tolerance than ordinary stripper bolts, for better bearing action. Shoulder length is held to a plus tolerance to allow a nominal-size plate to swing freely underneath the head.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | Heat Treated Rc 32-43 | Black Oxide | Metric | Yes |
Parts Specification
| Shoulder Diameter (mm) | A Thread | Thread Pitch (mm) | B (mm) | D (mm) | E (mm) | F Diameter (mm) | G (mm) |
| 13mm | M10 | 1.5mm | 12mm | 9mm | 16.5mm | 18mm | 6mm |
