Socket Head

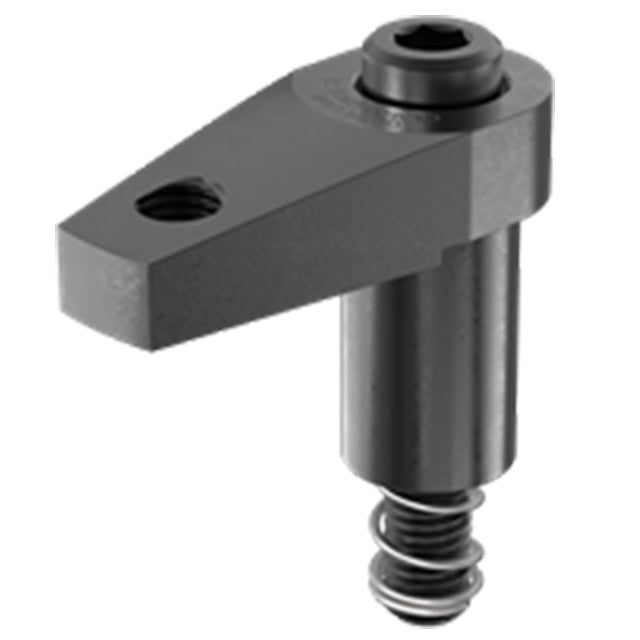

Hook clamps are designed to manually swing into the clamping position, then clamp straight down by screw action. These clamps allow clear loading while swung away in the unclamped position. Ideal in tight spaces where high clamping force is required. Hooks clamps are available in long arm, long armed tapped or standard arm (short arm).
Material
| Steel | |||||||||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS | ||||||
| Clamp Body | 4135 Steel | Heat Treated | Black Oxide | Yes | Yes | ||||||
| Socket-Head Cap Screw | Steel | - | Black Oxide | Yes | Yes | ||||||
| Spring | Spring Steel | - | Black Oxide | Yes | Yes | ||||||
| Thread Size | Thread Pitch (mm) | A (mm) | B Diameter+0/-.03 (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) |
| M8 | 1.25mm | 30.3mm | 18mm | 23.1mm | 11.8mm | 22.2mm | 9.7mm | 21.5mm | M8 x 50mm | 1.6mm | 23.9mm |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
