Bar-Handle Knobs & Screw Clamps

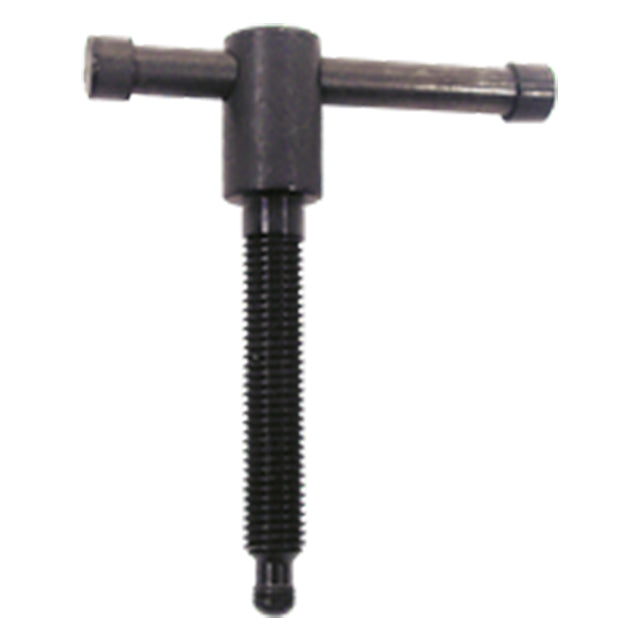

Heavy-duty screw clamp with a sliding bar handle for excellent leverage. The sliding bar can be moved to any position for convenient tightening, and is held in place by light spring force. These screw clamps accept all standard types of swivel feet. Made in USA.
Application Information
The sliding bar can be positioned for convenient clamping in tight spaces
Swivel Foot
Choice of f foot types. Bar-Handle Screw Clamps use patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use.
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Carburized-hardened | Yes | Yes |
| Sliding Handle and Steel Foot | 1215 Steel | - | Black Oxide Finish | Yes | Yes |
| Spring | 300-Series Stainless | - | - | Yes | Yes |
| Delrin foot | White Delrin 500 | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B Length (mm) |
| M12 | 1.75mm | 50mm |
