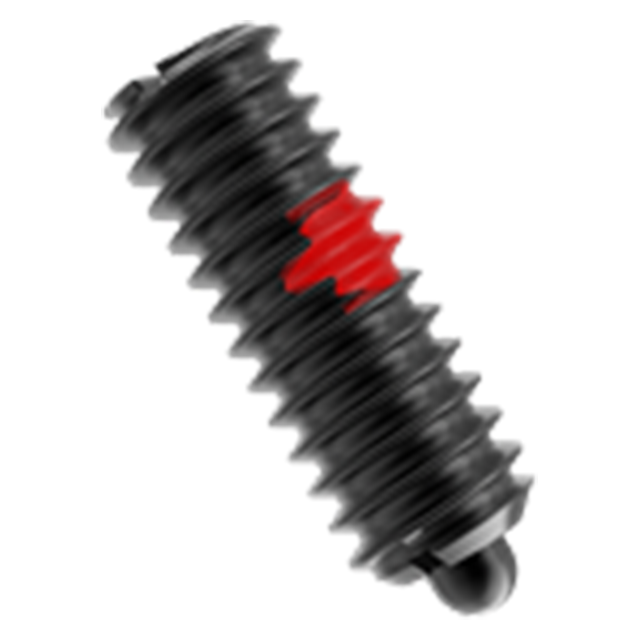

Short Spring Plungers-Steel
Self-contained plunger-and-spring device available in many sizes and forces. Short Spring Plungers have a shorter overall length, and shorter stroke, than standard Spring Plungers. Made in USA. Install and/or adjust from either end.
Internal View
Nose Extended
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide | Yes | Yes |
| Plunger Nose | 1215 Steel | Carburized-Hardened | Black Oxide(heavy force) or zinc plated clear chromate (light force) | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | Initial End Force (n) | Final End Force (n) | B (mm) | C±.3 (mm) | D Diameter (mm) |
| M12 | 1.75mm | 8 N | 24 N | 19mm | 3.8mm | 6.30mm |
