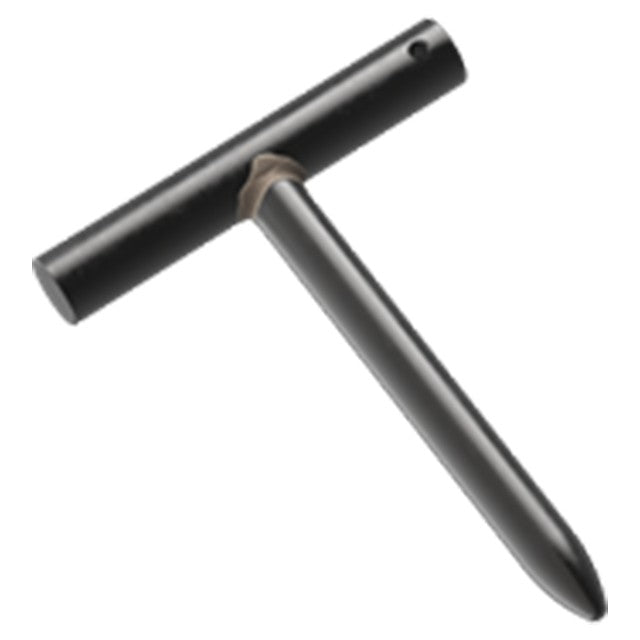

T Pins
are removable locating pins, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Made in USA.
Application Information
T Pins can be used for accurately aligning two plates.
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle | 1215 Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) |
| 5/16" | 0.3125" | 2" | 2-1/2" | 7/16" | 1/2" |
