Button Handle

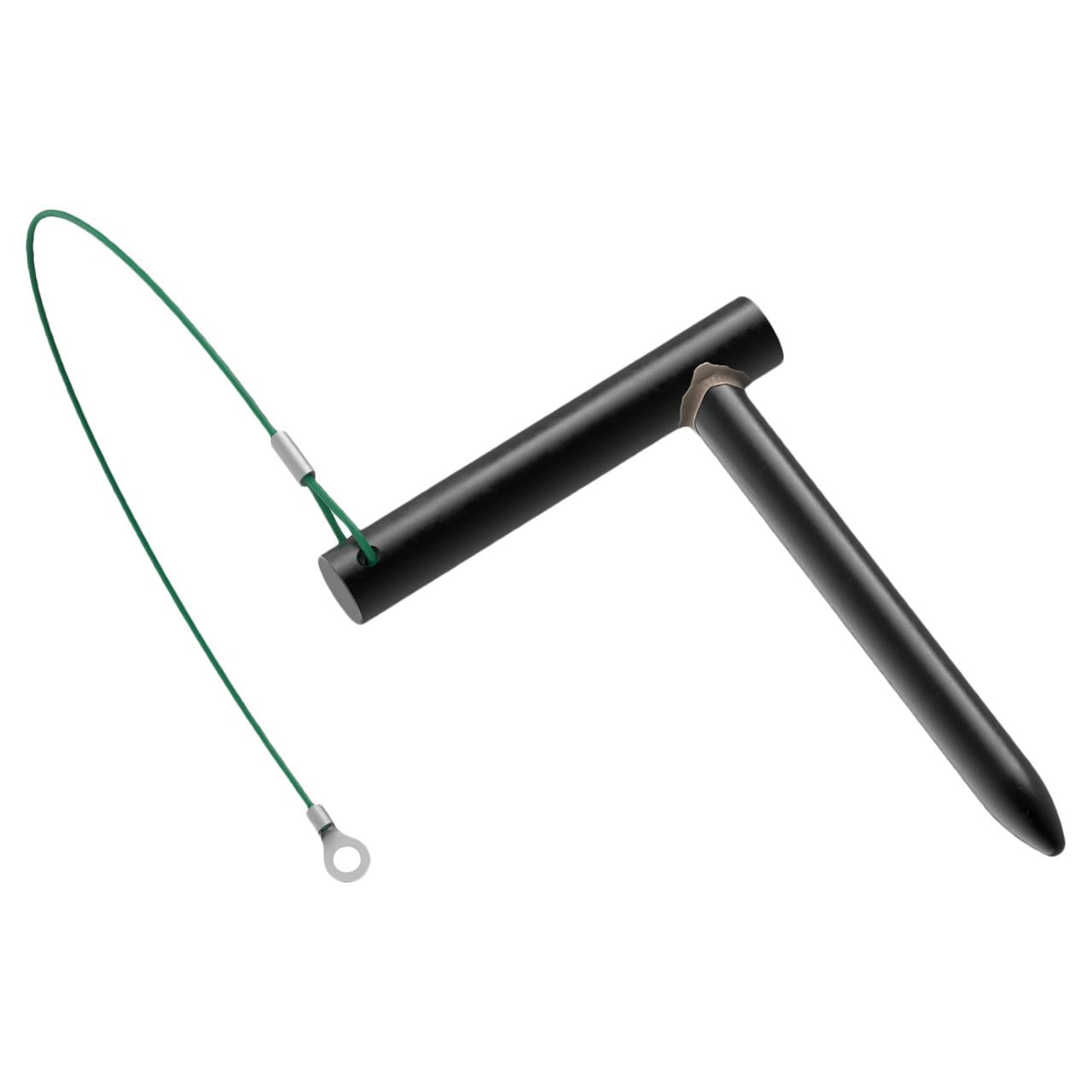

L Pins are removable locating pins, precision ground for accurately aligning holes. L shaped pins feature a body inset into a solid handle and silver soldered to create a sturdy assembly. L pin handle ends have a small hole for attaching an optional cable. Made in USA.
Technical Information
Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.
Optional 4 Ball
Pins are optionally available with four balls instead of two, for more-distributed ball-pullout force. Add "-4BALL" to the part number.
Optional Cable
To order pins with a standard cable assembly attached (Cable Assembly CL-82-KA-12.0-#2 cable size, 12.0" long, with a terminal at the free end for a #10 or M5 attachment screw), add "-C" to the part number. For an optional 10" nylon lanyard, add "-NL" to the part number.
Material
| Item | Material | Heat Treat | Finish |
| Shank | 17-4PH Stainless Steel | Rc 40 min | N/A |
| Spindle | 17-4PH Stainless Steel | - | N/A |
| Handle and Button | 300-Series Stainless Steel | - | N/A |
| Spring and Ring | 17-4PH/302 Stainless Steel | - | N/A |
| Balls | 440C or 300-Series Stainless Steel | - | N/A |
Parts Specification
| A Diameter (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) |
| 12mm | 102mm | 89mm | 16mm | 11mm |
