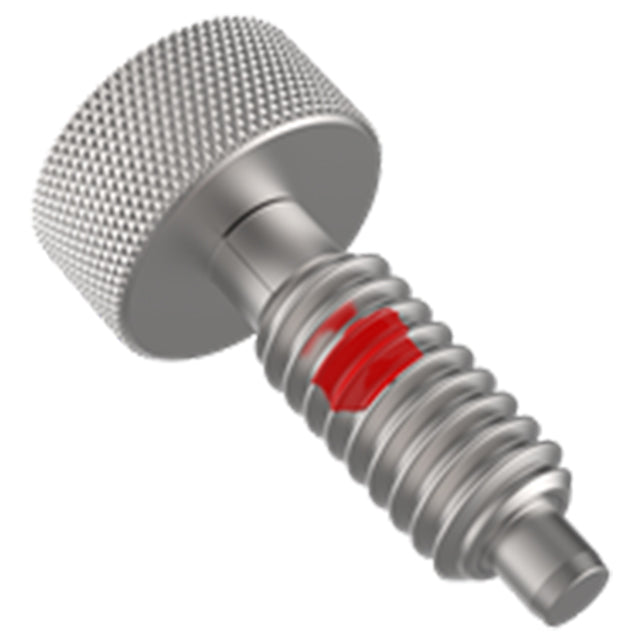

Hand-Retractable Plunger
Spring-loaded plunger that locks in retracted position. To lock, pull knurled knob back and turn 90°. Slight taper on plunger tip for easy alignment. Made in USA.
Application Information
Operation
Pull knob to retract
Turn 90° in either direction to lock
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger | 1215 Steel | Carburized-Hardened | Zinc Plated Clear Chromate | Yes | Yes |
| Body and Knurled Head | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Spring | 17-7PH stainless steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | Initial End Force (n) | Final End Force (n) | B Diameter (mm) | C (mm) | D (mm) | E (mm) | F Diameter (mm) |
| M12 | 1.75mm | 11 N | 44 N | 6mm | 6.5mm | 22mm | 9.5mm | 25.5mm |
