Double-End Clamp Straps
Heavy-duty steel clamp strap with two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading. Standard radius nose at each end provides firm workpiece contact. Made in USA.
Application Information
Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

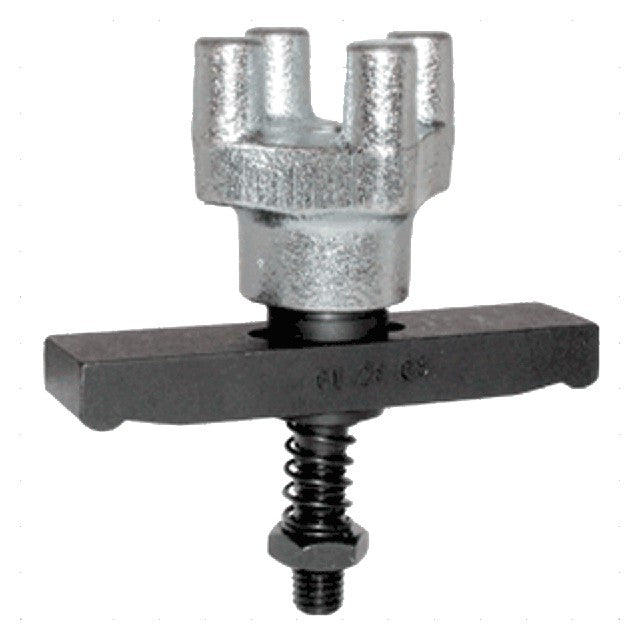

Assembly with Bar Knob & Spherical Washer (-6)
This clamp assembly includes a Double-End Clamp Strap plus the following Items:
Bar Knob
Spherical Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | RoHS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | ✔ | ✔ |
Parts Specification
| Thread Size | Thread Pitch (mm) | A (mm) | B (mm) | C (mm) | Clamp Strap | Clamp Spring | Flat Washer | Clamping Stud | Jam Nut | Bar Knob | Spherical Washer |
| M12 | 1.75mm | 152.5mm | 32mm | 16mm | CL-30-CS | CL-9-SPG | CL-2-FW | CLM-12x95-STUD | CLM-12-JN | CLM-9-BK | CL-3-SW |
