Double-End Clamp Strap Assembly
Heavy-duty steel clamp strap with two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading. Standard radius nose at each end provides firm workpiece contact. Made in USA.
Application Information
Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

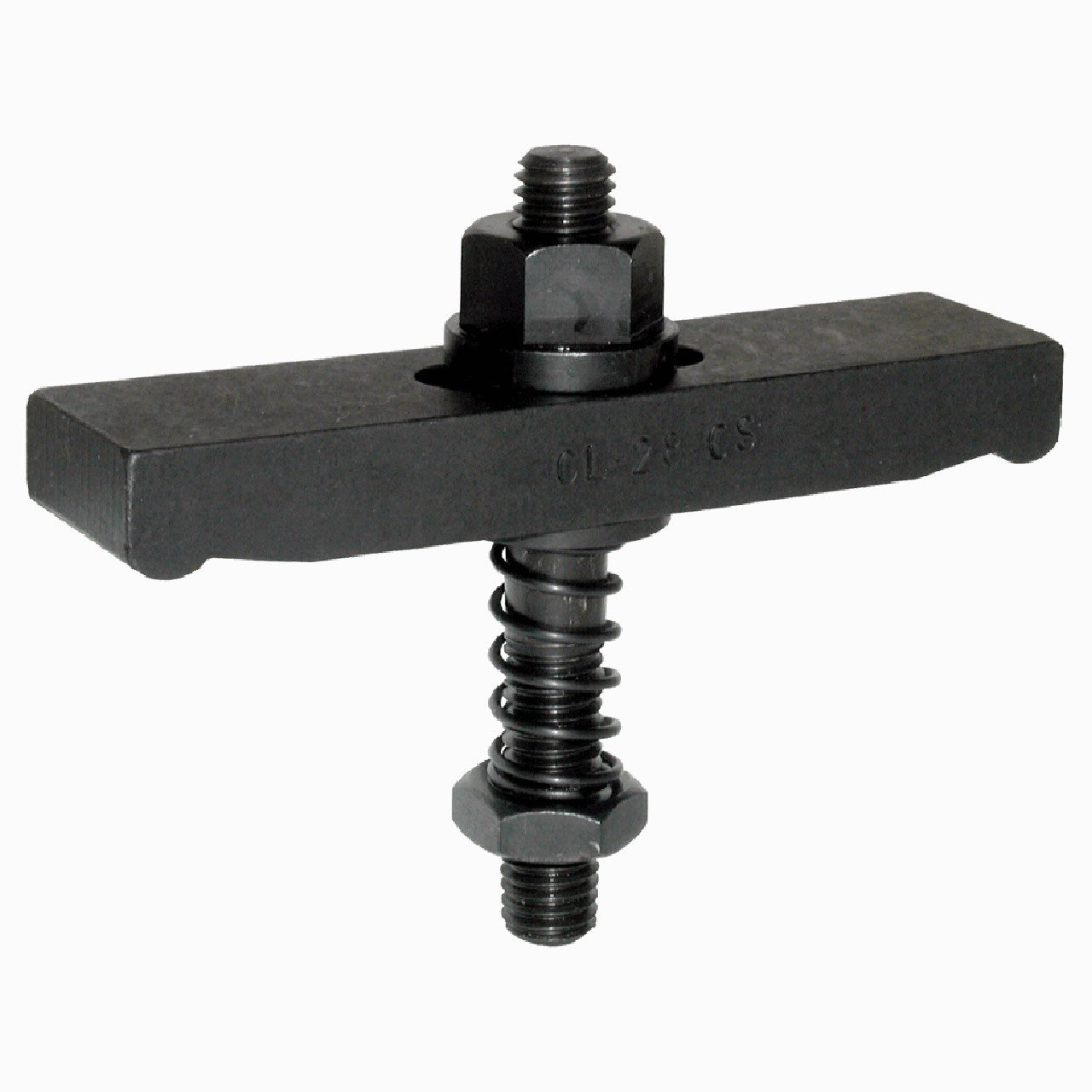

Assembly with Spherical Nut & Washer (-1)
This clamp assembly includes a Double-End Clamp Strap plus the following Items:
Spherical Nut and Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | RoHS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | ✔ | ✔ |
Parts Specification
| Thread Size | Thread Pitch (mm) | A (mm) | B (mm) | C (mm) |
| M12 | 1.75mm | 152.5mm | 32mm | 16mm |
