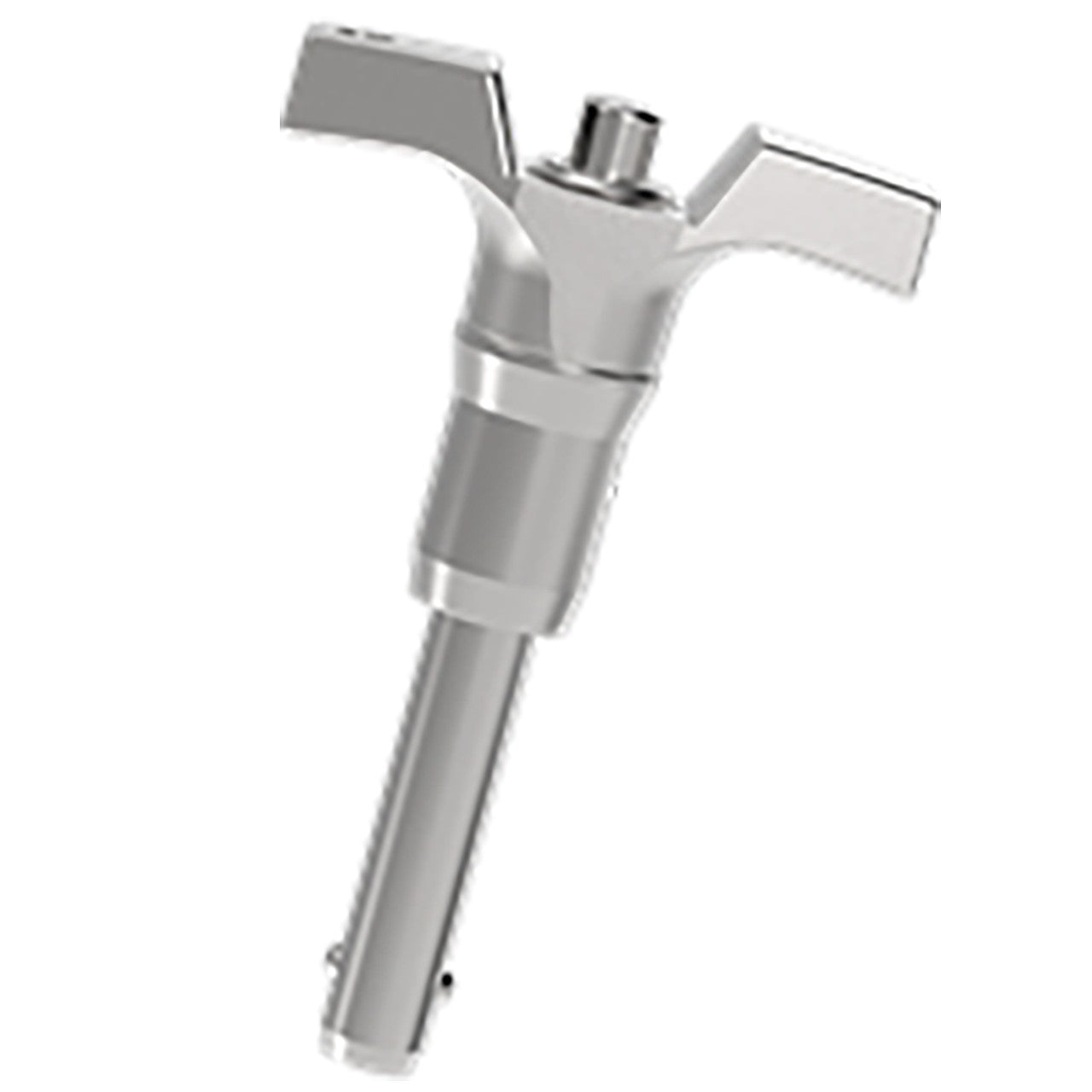

T Handle
Heavy-Duty Ball Lock Pins are similar to the standard single-acting Ball Lock Pins, except they are available only in stainless steel, and have a larger, heavier handle for rough service. Handles are made of solid stainless steel for maximum impact strength, and are specially shaped to prevent accidentally pressing the release button. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank. They are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.
Technical Information
Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract.
Optional Cable
To order pins with a standard cable assembly attached, add "-C" to the part number.
- For an optional 10" nylon lanyard, add "-NL" to the part number
Material
Parts Specification
| A Diameter Nominal (mm) | A Diameter Actual (mm) | Grip Length (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) | F (mm) | G Diameter (mm) | H (mm) | Q (mm) |
| 12mm | 11.96 / 11.92mm | 80mm | 14.4mm | 11.3mm | 7.5mm | 40.5mm | 21.5mm | 13mm | 60mm | 20.5mm |
