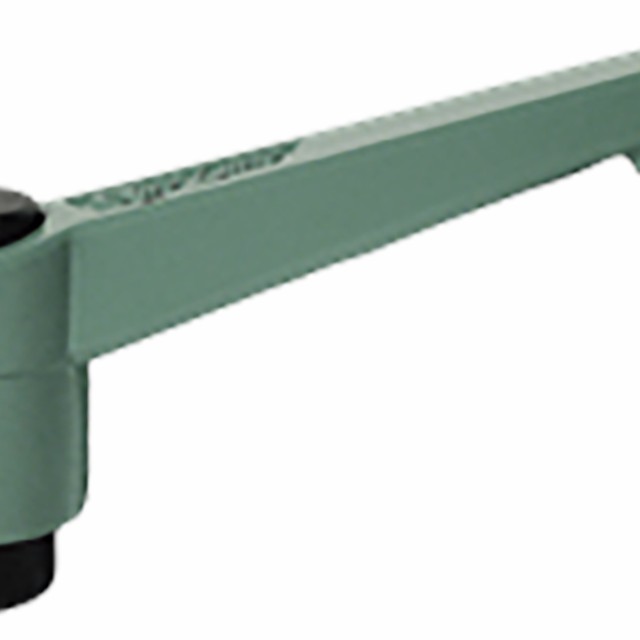

Adjustable Handle
Adjustable clamping handle that can be reset to any angle. Ideal for clamping in a confined space, or when a specific handle position is desired. Rugged spring-loaded spline mechanism.
Application Information
Operation
Lift handle to disengage serrations, rotate to desired position, then release handle to automatically re-engage spline.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Handle | Zinc Die Casting | - | Enamel Paint | Yes | Yes |
| Body,Screw & Spring | Mild Steel | - | Black Oxide Finish | Yes | Yes |
Parts Specification
| Size | E Thread | Thread Pitch (mm) | J (mm) |
| 4 | M12 | 1.75mm | 16mm |
