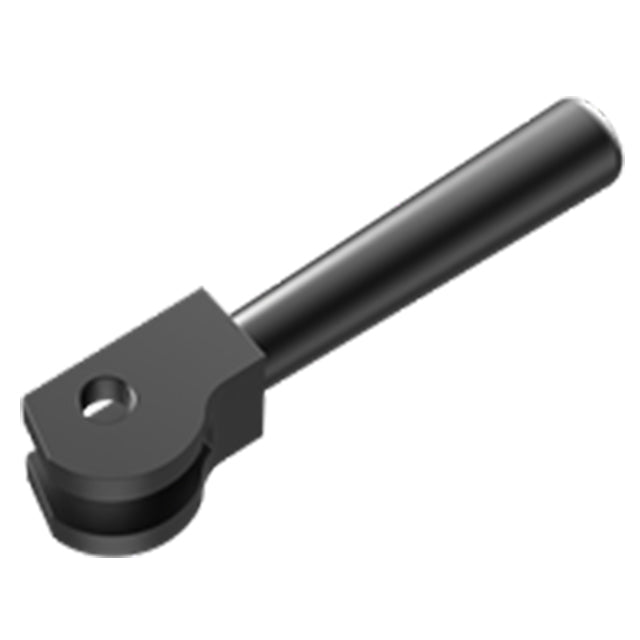

Cam Handles
Straddle-type cam handle that can be used with an Eye Bolt or a custom-made drawbar. Continuous-rise spiral cam locks securely in any position.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Mild Steel | carburized-hardened | Black Oxide | Yes | Yes |
Parts Specification
| Matching Eyebolt Size | A Diameter (mm) | B Nominal (mm) | B Actual (mm) | C (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) |
| M6 | 6mm | 6mm | 6.8mm | 64.5mm | 1.17mm | 6.5mm | 16mm | 4.8mm | 10mm | 8.5mm | 9.5mm |
