Toggle Clamps

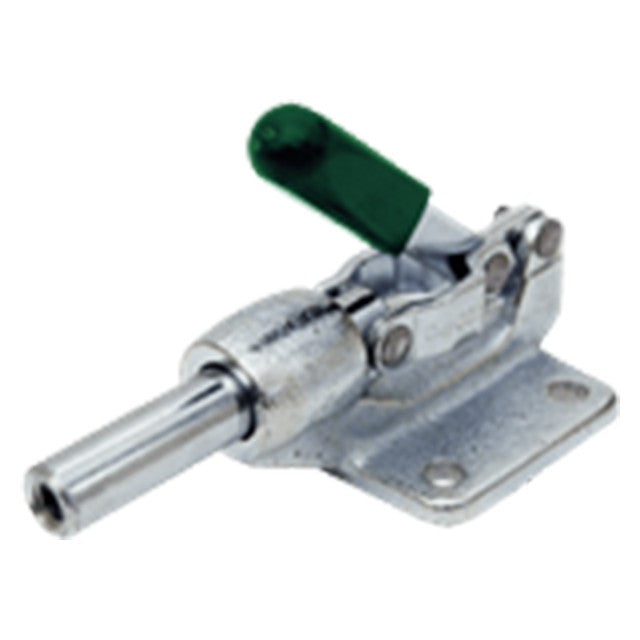

Tapped Plunger
Durable plunger clamp with a nodular iron base. Locks in extended or retracted position. 1-3/16" plunger travel. Plunger is tapped to accept any 5/16-18 spindle (M8 in metric).
Clamping Action
Clamped Position (Push)
Open Position (Push)
Clamped Position (Pull)
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1215,1008,1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Base | Nodular Iron | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Tapped Hole In Plunger | Thread Pitch (mm) | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Tapped Plunger, Flanged Base | M8 | 1.25mm | 500lbs. | 0.9lbs. |
