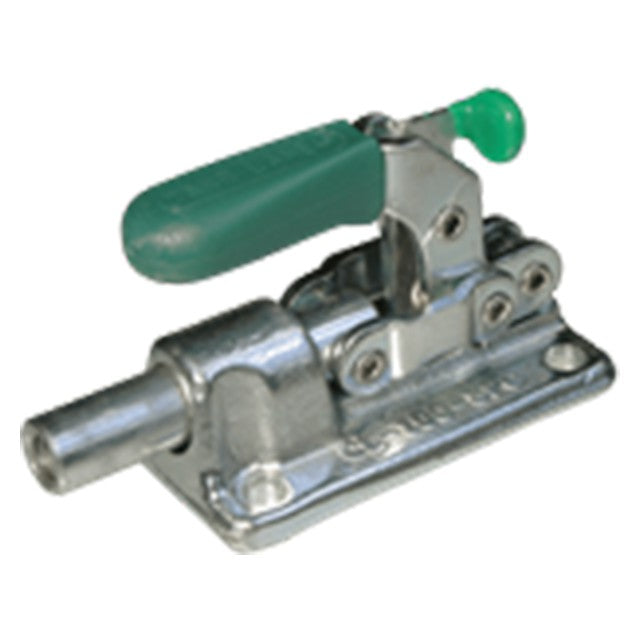

CL-100-LSPC Series with Safety Lock-300lbs.
CL-100-LSPCTapped Plunger
Safety-lock version of the CL-100-SPC toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle. Please note, the safety lock functions only in extended position (push), not in retracted position (pull).
Safety-lock version of the CL-100-SPC toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle. Please note, the safety lock functions only in extended position (push), not in retracted position (pull).
Clamping Action
Clamped Position
Press Lever to Unlock
Open Position
Parts Specification
| Description | Tapped Hole In Plunger | Thread Pitch (mm) | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Tapped Plunger, Flanged Base | M6 | 1mm | 300lbs. | 0.5lbs. |
