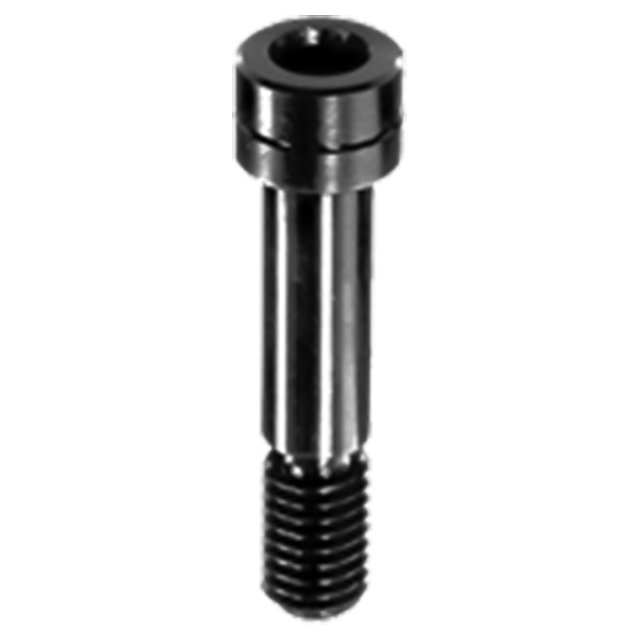

Locating Screw
Locating Screws are used in all Standard (MF40) modular systems to mount locating components in multipurpose grid holes. These specially designed, precision shoulder screws accurately locate and fasten at the same time.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 4130 Steel | Heat treated Rc 33-39 | Black Oxide | ✔ | ✔ |
Parts Specification
| Size | A (Inch) | B Diameter (Inch) | C Diameter (Inch) | E (Inch) | F (Inch) | G (Inch) |
| Heavy | 3" | 0.6250" | 15/16" | 5/8-11" | 3-5/8" | 1/2" |
