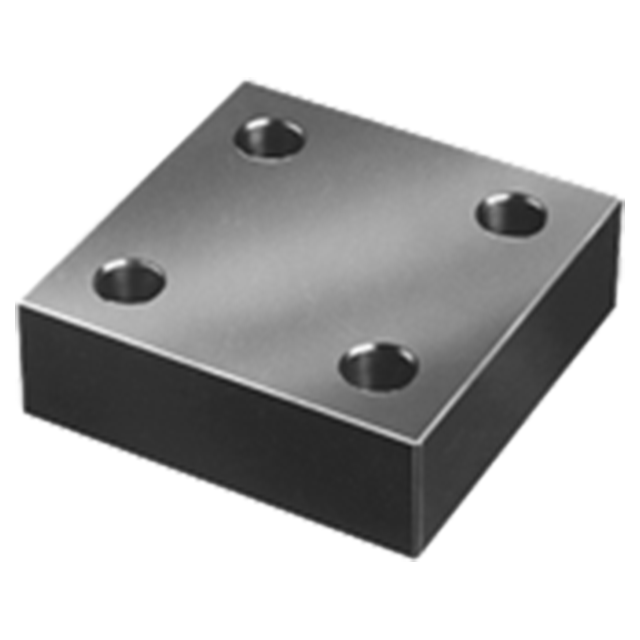

Locating Gages
Use when connecting two tooling plates on a large machine table, to hold locational tolerances between all grid holes. Two Locating Gages are required, mounted at opposite sides.
Mounting
Fasten each Locating Gage with four Locating Screws, two in each plate (order separately below). Remove Locating Gages after fastening plates to the machine.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1045 Steel | - | Black Oxide | ✔ | ✔ |
Parts Specification
| A | B Dia | Locating Screw (4 Reqd) |
| 3-3/8 | .6250 | CL-MF50-4302 4 REQD |
