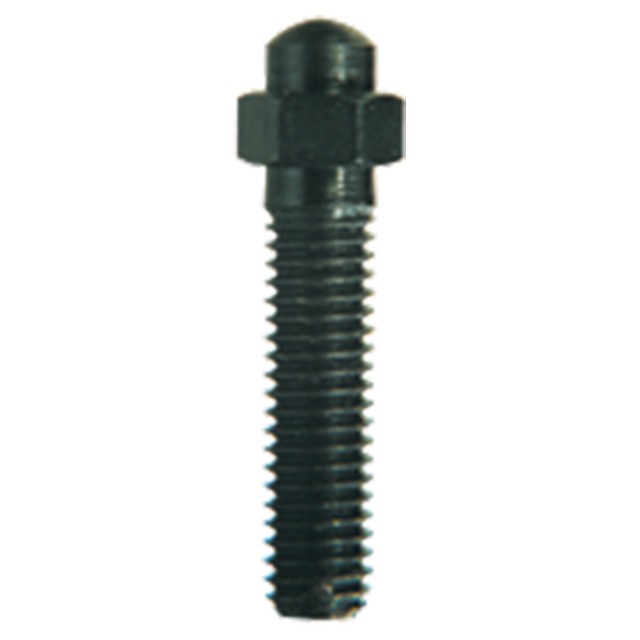

Adjustable Locating Buttons
Support screw with fine threads for precise adjustment. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size (Inch) | A (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) | G (Inch) |
| 1/2-20" | 2-1/2" | 5/16" | 5/16" | 1/2" | 5/16" | 5/8" |
