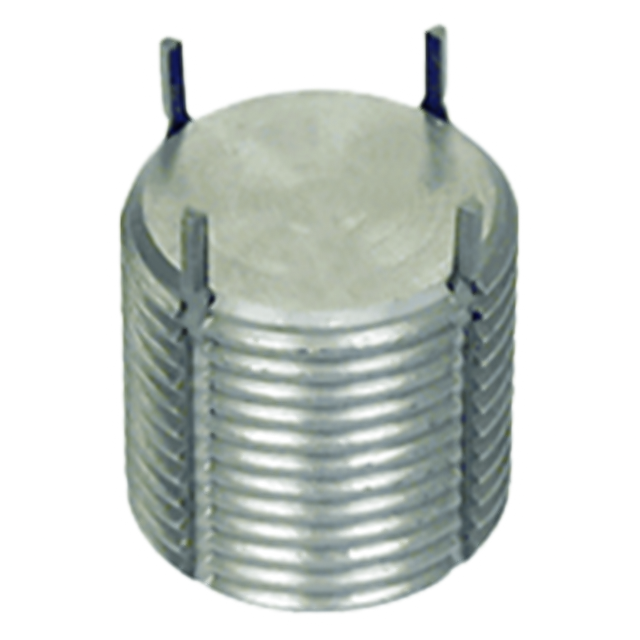

Key Inserts-Solid, Stainless Steel
Solid Key Inserts are ideal for relocating a drilled or tapped hole. This threaded plug installs quickly, and the locking keys positively prevent the insert from rotating.
Application Information
Before Repair (left). After Repair (right).
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 303 Stainless Steel | - | - | ✔ | ✔ |
| Keys | 302 Stainless Steel | - | - | ✔ | ✔ |
Parts Specification
| External Thread | L Length(inch) | K Minimum(inch) | Shear Engagement Area (sq In) |
| 9/16-12 | 0.50 inch | 0.465 inch | 0.498 sq in |
