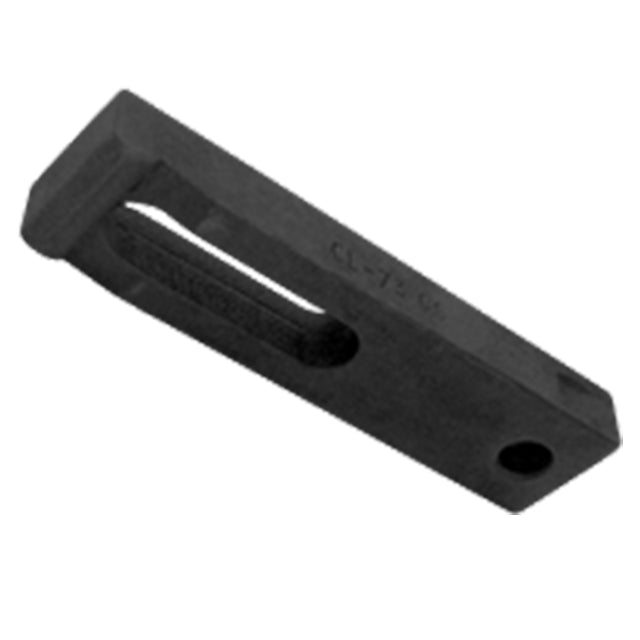

Tapped-Heel Clamp Straps
Heavy-duty steel version of the Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. An indentation at the rear of each side provides a secure finger grip for retracting the clamp.
Application Information
Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Stud Size | B | C | D | E | F | G | H | J | K Thread |
| 3/4-10 | 1 | 1-3/4 | 7 | 3 | 2-13/32 | 1/2 | 19/32 | 13/16 | 3/4-10 |
