Product Information

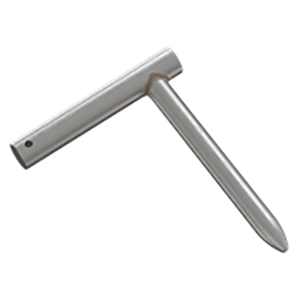

L Pins are removable locating pins, precision ground for accurately aligning holes. L shaped pins feature a body inset into a solid handle and silver soldered to create a sturdy assembly. L pin handle ends have a small hole for attaching an optional cable. L shaped pins are available in pin diameters from 1/8 to 3/4", including several number and letter sizes (4 to 20mm in metric), most in a choice of select pin lengths.
Application Information_1

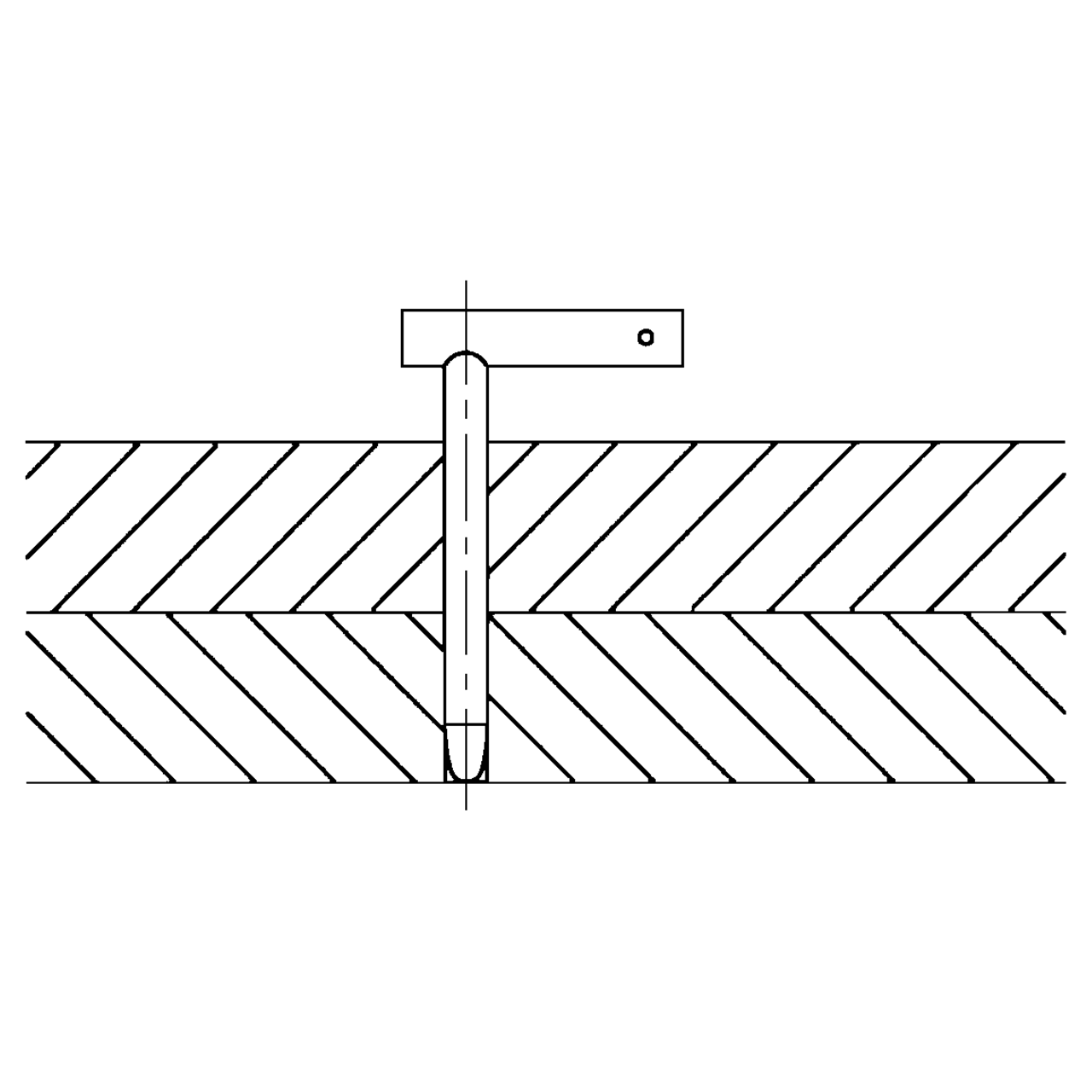

L Pins can be used for accurately aligning two plates
Optional Cable
To order L Pins with a standard cable assembly attached, add "-C" to the part number, e.g. CL-7-LP-ZC-C (#2 cable size, 10-12" long, with a terminal at the free end for a #10 or M5 attachment screw).
| Item | Material | Head Tread | Stud |
| Pin | 1215 Steel | Case-Hardened | Zinc Plated |
| Handle | 1215 Steel | - | Zinc Plated |
| Manufacturer Part Number | CL-9-LP-ZC |
| Diameter (Inch) | 3/8" |
| Product Type | Zinc Plated L Pin |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
