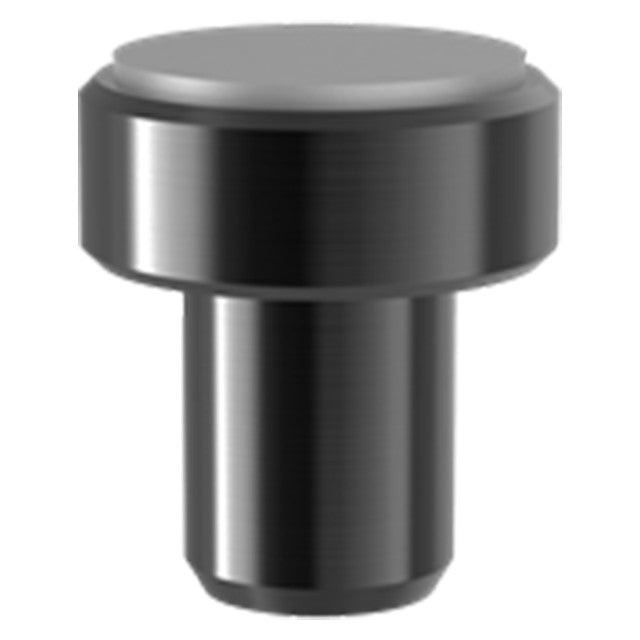

Carbide-Tipped Rest Buttons
These rest buttons feature a thick embedded carbide pad, finish machined to a precision height. Like standard Rest Buttons, these locators have a close-tolerance shank for installation in a reamed hole. Made in USA.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1144 Steel | Heat Treated Rc 40-45 | Black Oxide | Yes | Yes |
| Pad | Carbide | - | - | Yes | Yes |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C Nominal (Inch) | C Actual (Inch) | D Diameter (Inch) | E Diameter (Inch) |
| 1/2" | 0.5010" | 5/8" | 1/2" | 0.5000" | 3/4" | 7/8" |
