Slotted-Heel Gooseneck Clamp Straps
Gooseneck version of Slotted-Heel Clamp Straps. This design recesses the clamping nut to provide a low overall profile. Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp.
Application Information
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

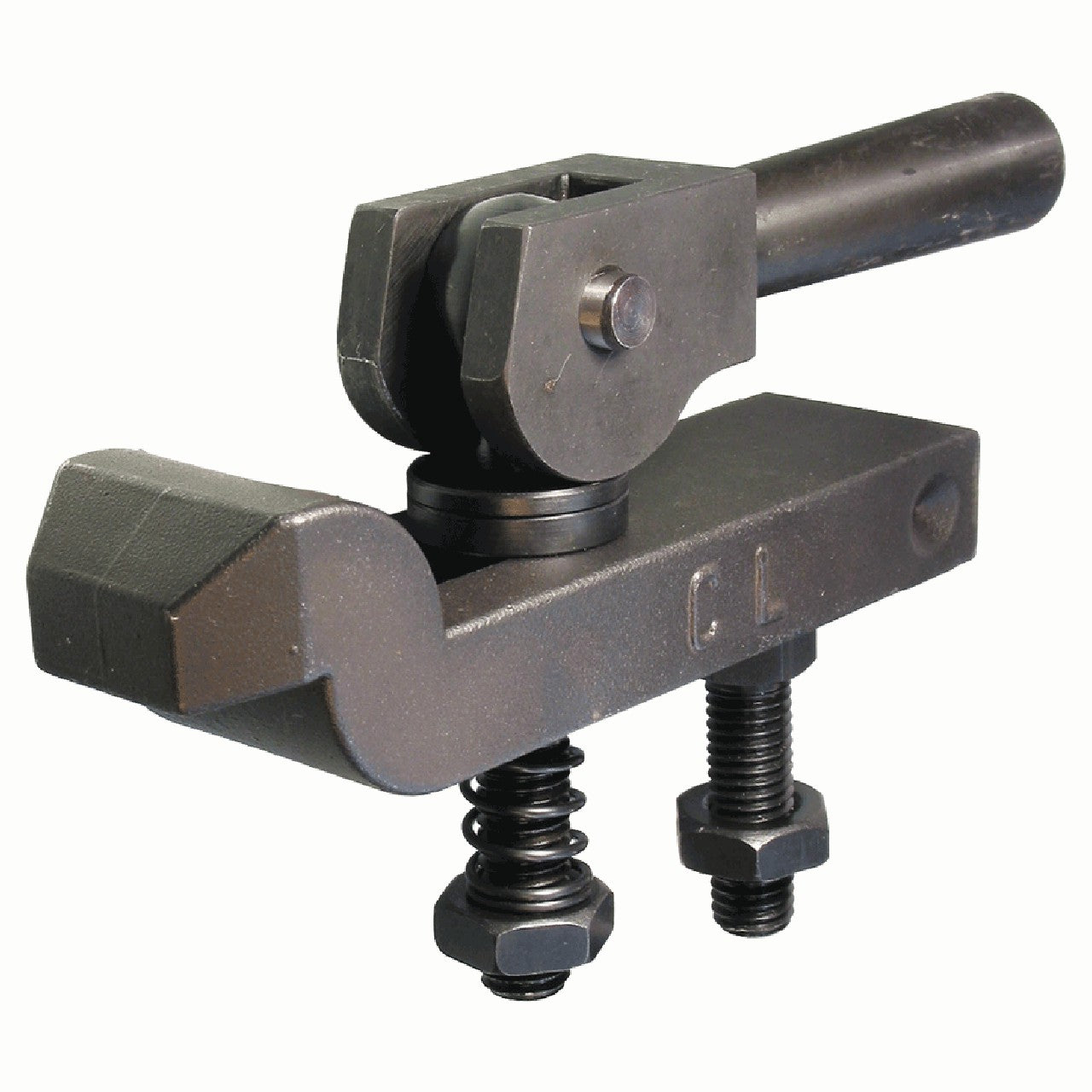

Assembly with Cam Handle & Spherical Washer (-7)
This clamp assembly includes a Slotted-Heel Gooseneck Clamp Strap plus the following Items:
- Cam Handle
- Spherical Washer
- Eye Bolt
- Clevis Pin
- Clamp Spring
- Flat Washer
- Jam Nut
- Clamp Rest
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | C (Inch) | D (Inch) | S (Inch) |
| 1/2-13" | 0.79" | 1.57" | 5.91" | 2.75" |
