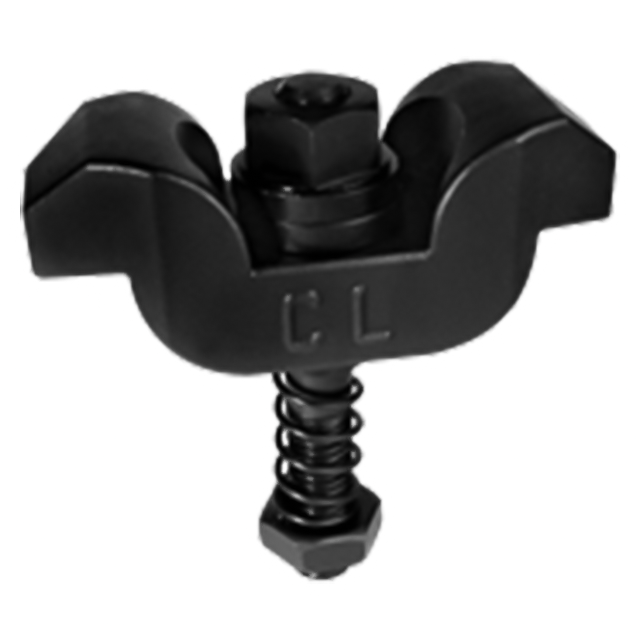

Double-End Gooseneck Clamp Straps
Gooseneck version of Double-End Clamp Straps. This design recesses the clamping nut to provide a low overall profile. Double-End Clamp Straps have two clamping ends, for holding two workpieces simultaneously. Turn strap 90 Degree for clearing loading. Made in USA.The Double-End Gooseneck Clamp Strap is for Heavy System MF50 (5/8-11 stud size). It can be assembled into a low clamp assembly or a tall clamp assembly by choosing a short or long Clamping Stud and Clamp Rest.
Assembly Components
Double-End Gooseneck Clamp Strap
Clamping Stud (two choices)
Spherical Nut & Washer
Clamp Rest (two choices)
Clamp Spri
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | - | Black Oxide | ✔ | ✔ |
Parts Specification
| Clamp Strap Length | A |
| 5 | 2-3/8 |
