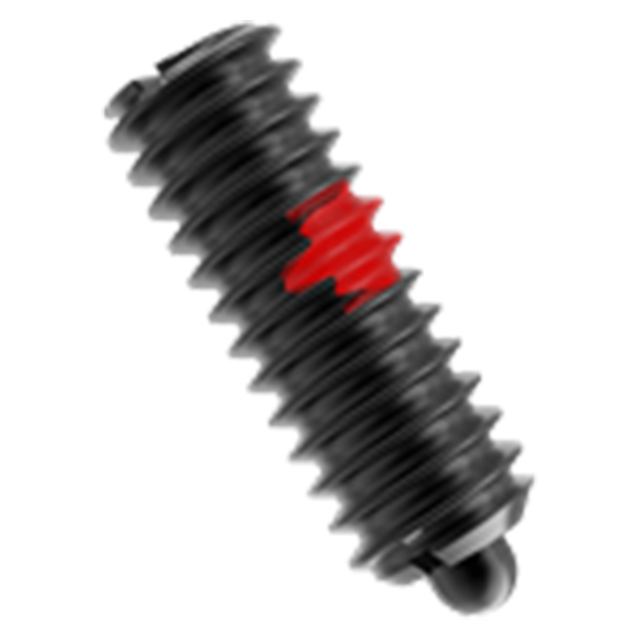

Short Spring Plungers-Steel
Self-contained plunger-and-spring device available in many sizes and forces. Short Spring Plungers have a shorter overall length, and shorter stroke, than the standard Spring Plungers. The version shown here has a steel body and a hardened steel plunger nose.
Internal View
Nose Extended Nose Retracted
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | Yes | Black Oxide | Yes | Yes |
| Plunger Nose | 1215 Steel | Carburized-Hardened | Black Oxide(heavy force) or zinc plated clear chromate (light force) | Yes | Yes |
| Spring | Music Wire | Yes | Yes | Yes | Yes |
Parts Specification
| A Thread (Inch) | Initial End Force (lbs) | Final End Force (lbs) | B (Inch) | C±.010 | D Diameter (Inch) |
| 5/8-11" | 7.0 lbs. | 50.0 lbs. | 1-1/16" | 0.215 | 0.310" |
