Product Information

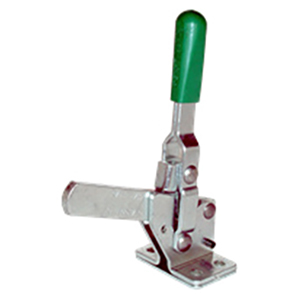

CL-800-VTC Solid Angled Arm, Flanged Base Large clamp with an angled arm for increased clearance underneath the arm. Also useful for applying clamping force at an angle. Arm opens 126 Degree while handle moves 76 Degree. Solid arm provides fixed spindle location using a weld-on bolt retainer. Straight-base version has a longer handle and includes a weld-on base bracket to allow mounting at any angle. 1000 lbs holding capacity.
Clamping Action
Clamped Position Open Position.
Material Specifications
| Item | Material | Head Tread | Stud | DFARS | RoHS |
| Clamp Body | 1008,1010, and/or 1018 Steel | - | Zinc plated clear chromate | ? | ? |
| Rivets | 400-Series Stainless | - | - | ? | ? |
| Handle | Vinyl | - | - | ? | ? |
Product Specifications
| Manufacturer Part Number | CL-800-VTC |
| Holding Capacity (lbs) | 1000 lbs |
| Product Type | Angle Arm Wide Opening |
