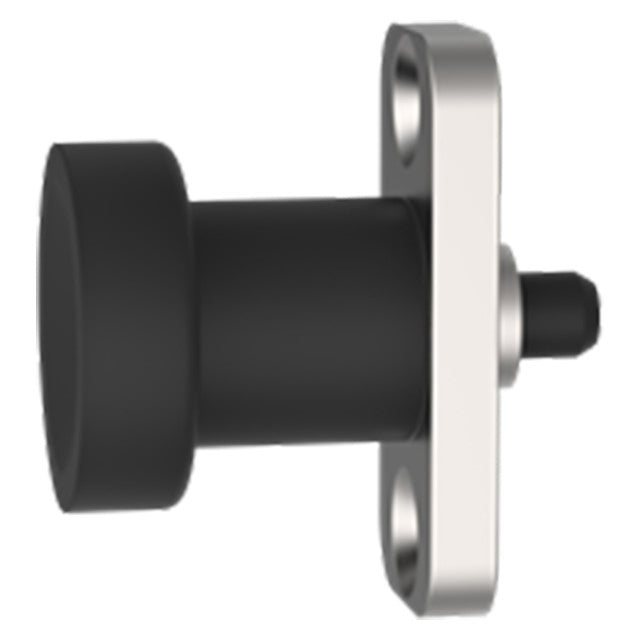

Hand-Retractable Plungers-Knob Handle with Mounting Plate
Precision indexing plunger with a attractive knob handle for convenient retraction. Mounting-plate version installs in a fixed position with two flat-head screws. Provides high strength and durability in an extremely compact assembly. Hardened and ground plunger. Tip has a slight taper for easy alignment.
The non-locking type has a spring-loaded plunger that stays extended by spring force except when manually held in retracted position.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Knob | Matte black fiber-reinforced nylon thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 230°F) | - | - | Yes | Yes |
| Plunger | Steel | Heat Treated | - | Yes | Yes |
| Body Plate | Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
Parts Specification
| A Diameter Nominal (inch) | A Diameter Actual (inch) | B Diameter Nominal (inch) | B Diameter Actual (inch) | C Standard Extension | D (inch) | E Diameter (inch) | F Diameter (inch) | G (inch) | H (inch) | J (inch) | K (inch) | L (inch) | Initial End Force (lbs) | Final End Force (lbs) |
| 10" | 0.393/0.390" | 6" | 0.2354/0.2346" | 0.24 | 0.10" | #8 or M4" | 0.98" | 0.18" | 1.57" | 0.71" | 1.181" | 1.12" | 1.9 lbs. | 4.9 lbs. |
