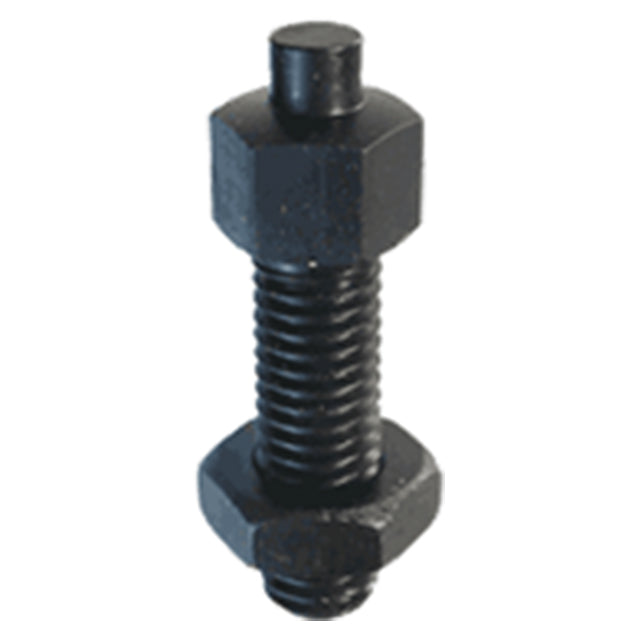

Clamp Rests
Rear support for Slotted-Heel Clamp Straps. The shoulder, which supports the Clamp Strap, has a large hex for easy adjustment and tightening. Jam Nut is included.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Rest Body | 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Jam Nut | Mild Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) |
| 3/4-10" | 15/32" | 1/4" | 5/8" | 1-1/16" | 2-1/2" |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
