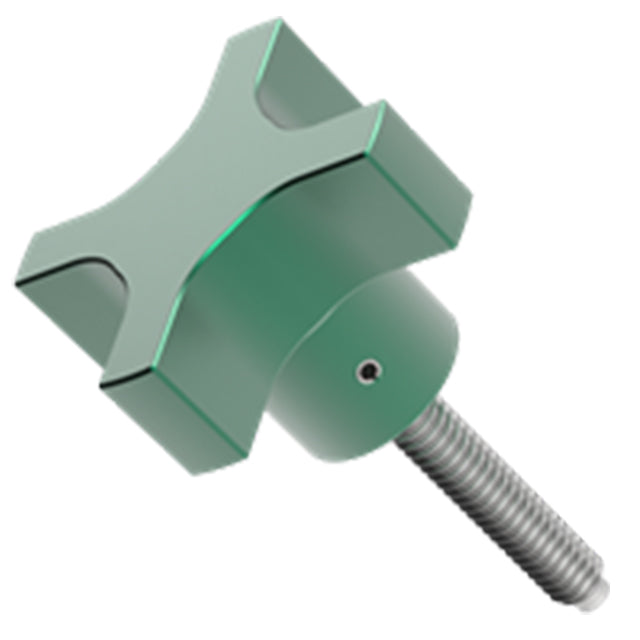

Extruded Hand Knob Assembly
Extruded, easy-to-grip hand knob with an integral steel clamping screw. Four-prong design provides a firm grip for applications requiring quick tightening and high torque.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Knob | Extruded Aluminum | Yes | Green Anodize | Yes | Yes |
| Screw | 1215 Steel | Yes | Zinc Plated Clear Chromate | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | C Diameter (Inch) | E Diameter (Inch) | H (Inch) | K Diameter (Inch) |
| 1/2-13" | 1" | 2" | 0.34" | 1-3/8" | 13/16" |
