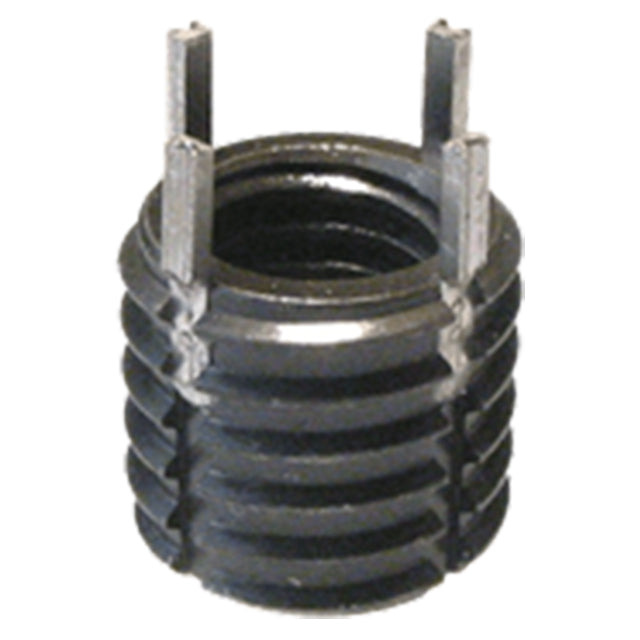

Key Inserts-Heavy Duty, Steel
General-purpose threaded inserts with a thick, heavy-duty thread wall, suitable for most applications. Key Inserts are ideal for thread reinforcement, especially when the mating stud or bolt will be removed frequently. They provide strong, permanent steel threads in almost any parent material-ferrous, non-ferrous, or non-metallic. Key Inserts are also well suited for quick repair of stripped, damaged, or worn threads. Locking keys positively prevent the insert from rotating.
Application Information
Key Inserts are often used to reinforce tapped holes in aluminum tooling plates.
Repair Kits contain an installation tool and several inserts of a given size.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide or Dry Lube | Yes | Yes |
| Keys | 302 Stainless Steel | - | - | Yes | Yes |
Parts Specification
| Internal Thread (Inch) | External Thread | Length | Shear Engagement Area (sq In.) |
| 7/8-14" | 1-1/4"-12 | 1.25 | 3.137 sq in. |
