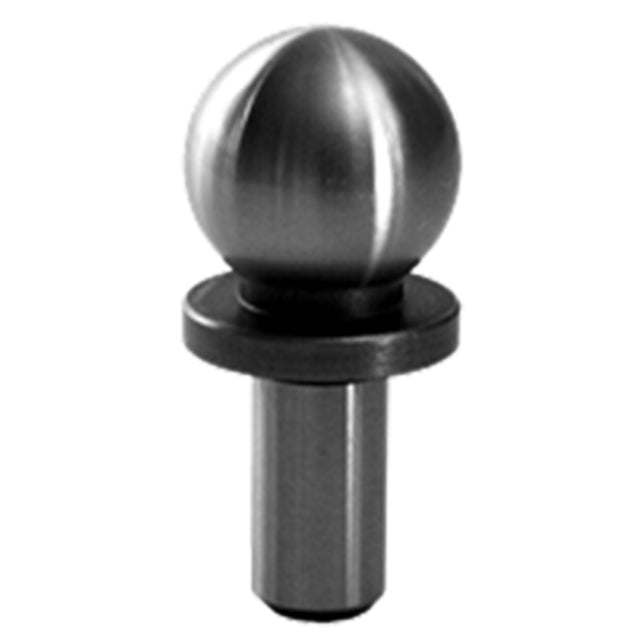

Construction Balls-Shoulder Type
Precision tooling ball used as a reference point for critical inspection, layout, and machining operations. Shoulder type has a precision height-reference shoulder to locate the ball in three dimensions. Concentricity between ball and shank is .0002" TIR. Made in USA.
Application Information
Shoulder-Type Construction Balls provide a reference point in three dimensions.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel | Heat Treated Rc 54-56 | - | Yes | Yes |
Parts Specification
| Ball Diameter Nominal (Inch) | Ball Diameter Actual (Inch) | A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | E Diameter (Inch) | F (Inch) | Style |
| 3/4" | 0.7502 / .7498" | 3/8" | 0.3750 / .3746" | 1.25" | 0.75" | 0.5000" | 1 |
