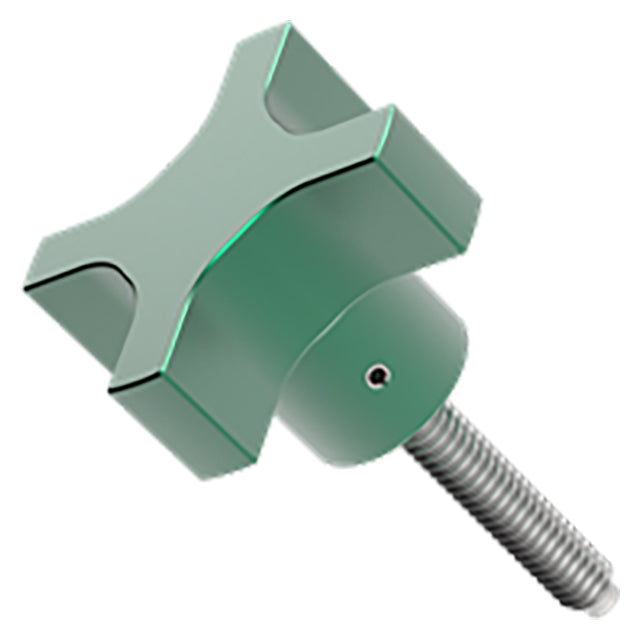

Extruded Hand Knob Assemblies
Extruded, easy-to-grip hand knob with an integral Steel clamping screw. Four-prong design provides a firm grip for applications requiring quick tightening and high torque.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Knob | Extruded Aluminum | - | Green Anodize | - | Yes |
| Screw | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
Parts Specification
| Athread (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) | Ediameter (Inch) | H (Inch) | K Diameter (Inch) |
| 3/8-16" | 3" | 2" | CL-6T-HKE-30" | 0.25" | 1-3/8" | 13/16" |
