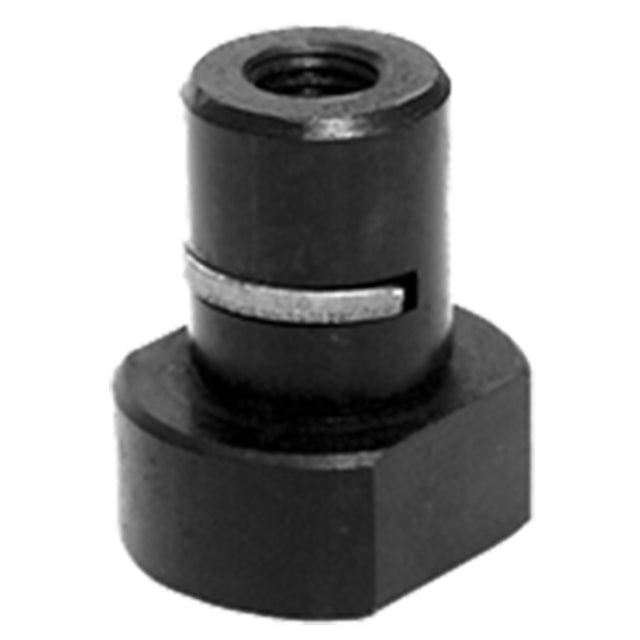

Sure-Lock Fixture Keys
Perfect fixture key for most applications. Keys are interchangeable because they all fit in a standard 5/8" reamed hole. Allows mounting any fixture on any machine tool simply by switching keys. Eliminates the need to slot the underside of a fixture. Concentricity .0005" TIR or better. Lock in place from above or below using a hex wrench. Made in USA.
Application Information
Can be locked in place from above(left). Can be locked in place from below(right).
Patented locking action aligns fixture key perfectly with slot axis.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Table Slot Size (Inch) | A (Inch) | Shank Diameter (Inch) | B (Inch) | C (Inch) | D (Inch) |
| 11/16" | 0.6875" | 5/8" | 3/4" | 7/16" | 0.41" |
