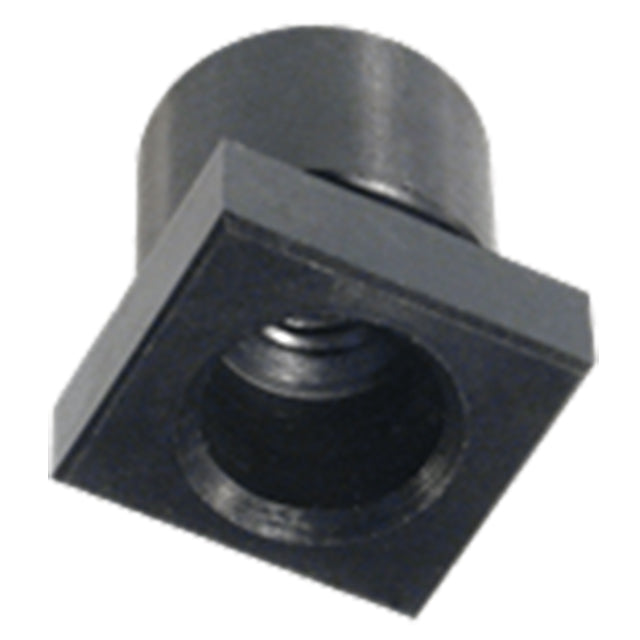

Reamed-Hole Fixture Keys
Each of these fixture keys fits two different table-slot sizes by turning 90°. Install in a standard 5/8" reamed hole. Concentricity .0005" TIR or better. Fasten from below with a 1/4-20 socket-head cap screw through the counterbored hole, or from above with a 5/16-18 socket-head cap screw. Made in USA.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Table Slot Size (Inch) | A (Inch) | B (Inch) |
| 3/4 and 13/16" | 0.7500" | 0.8125" |
