Product Information

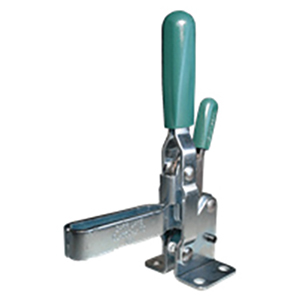

CL-650-LVTC Fixed Open Arm, Flanged Base Safety-lock version of our CL-650-VTC toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle. Large wide-opening clamp, available in several configurations. Arm opens 106 Degree while handle moves 58 Degree. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. Available in in steel or stainless steel. 750 lbs holding capacity.
Clamping Action
Clamped Position Press Lever to Unlock Open Position.
| Item | Material | Head Tread | Stud | DFARS | RoHS |
| Clamp Body | 1008,1010, and/or 1018 Steel | - | Zinc plated clear chromate | ? | ? |
| Rivets | 400-Series Stainless | - | - | ? | ? |
| Handle | Vinyl | - | - | ? | ? |
| Manufacturer Part Number | CL-550-LVTC |
| Holding Capacity (lbs) | 750 lbs |
| Product Type | Wide Opening |
