Swing C Clamps

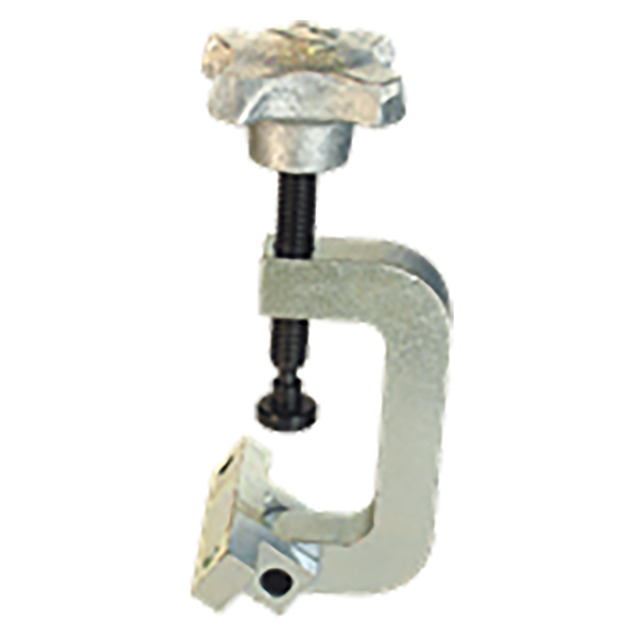

These unique C clamps have a hinged pad for fastening permanently to a fixture, allowing them to swing clear for workpiece loading. The hinged mounting pad bolts to the fixture with two socket-head cap screws. Four-prong knob provides a firm grip for applications requiring quick tightening and high torque. Clamping screw is cast securely in the knob and has a removable swivel foot. Made in USA.
Application Information
Swivel Foot
Swing C Clamps use the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20 Degree total angle). Foot threads are left-hand to positively prevent accidental back out during use. For other foot types, including Delrin feet.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Frame and Mounting Pad | Mild Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Knob | 319 Aluminum Alloy | - | - | Yes | Yes |
| Screw | 1215 Steel | - | Black Oxide | Yes | Yes |
| Foot | 1215 Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| Screw Thread (Inch) | A | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | K | L (Inch) | M (Inch) | N (Inch) | P (Inch) |
| 5/16-18" | 2-1/2 | 3/4" | 1/2" | 2-1/4" | 1-3/4" | 7/8" | 1-1/2" | 1-31/32" | 5/16 | 3-1/4" | 1/2" | 1" | 2" |
