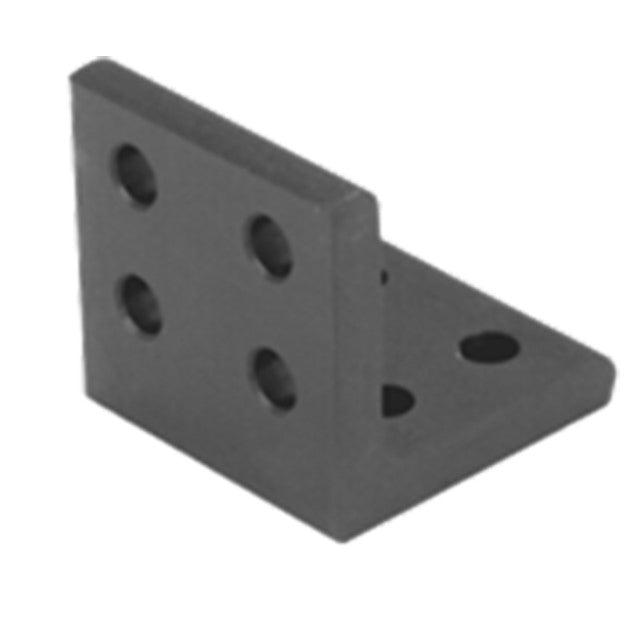

Angle Brackets with Locating Holes
Extremely accurate angle brackets with precision locating holes. These angles are ideal for bolting together like an erector set to create large-scale tooling. Ideal for assembly and welding fixtures.The 90° angle and eight locating holes are held to close tolerances to maintain good accuracy in built up tooling. Made in USA.
Application Information
Angle-Bracket Locating Bolts
These precision bolts are required to accurately fasten angle brackets to each other, and to other tooling. The ground locating diameter provides a slight press fit when angles are bolted together. Order bolts and hex nuts separately below.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Angle Brackets | ASTM A36 Steel | - | Black Oxide | ✔ | ✔ |
| Locating Bolts | Steel | - | ✔ | ✔ | ✔ |
Parts Specification
| A Thread | B | Matching Hex Nut |
| 5/16-24 | 1.000 | CL-5-FHN |
