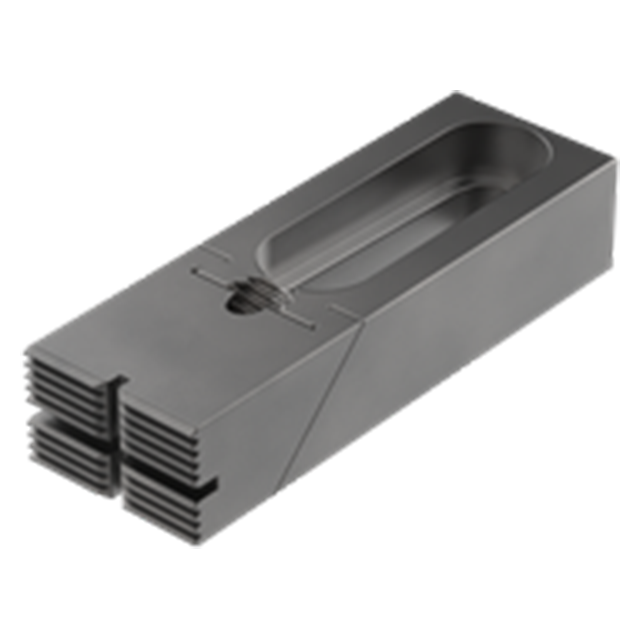

Serrated Adjustable Edge Clamps
These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding jaw with a hex wrench. Choice of high-nose or low-nose clamping jaw. V-groove in nose is useful for clamping round parts or corners.The adjustable (slotted) edge clamps shown here are useful for mounting directly on a machine table. The slot is tapered to prevent the clamp from backing off under heavy forces (use two mounting screws on longer clamps).
Application Information
Low Nose Version
The low-nose version is ideal for thin parts and other applications where extra machining clearance is required
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body and Nose | 1018 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| TClamping Screw | 4140 Steel | Heat Treated Rc 43-45 | Black Oxide | Yes | Yes |
Parts Specification
| Mounting Screw Size (Inch) | A (Inch) | B (Inch) | C (Inch) | G (Inch) | H (Inch) | K (Inch) | L (Inch) | M (Inch) | N (Inch) | P (Inch) | Q (Inch) |
| 1/2-13" | 5-1/2" | 7/8" | 1-1/2" | 2-1/8" | 1/2" | 5/16" | 4-11/16" | 1/4" | 1/4" | 1/4" | 2-1/2" |
