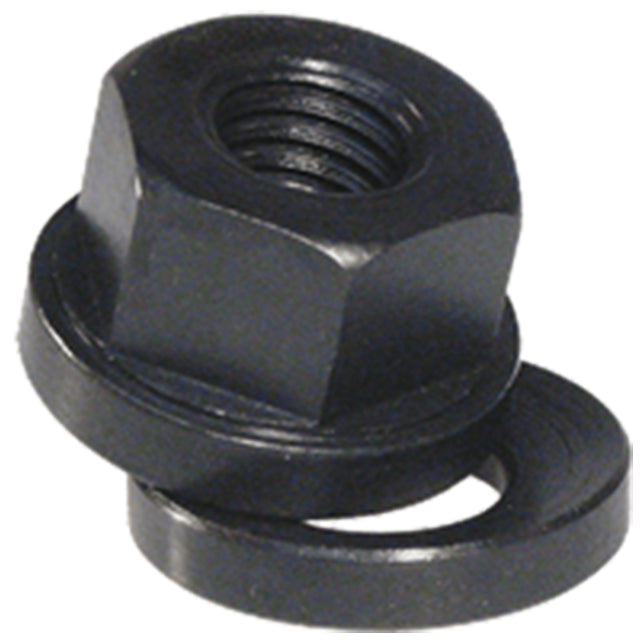

Spherical Nuts & Washers
Combination nut and washer that compensates whenever a stud and clamping surface are not exactly perpendicular. Heavy-hex nut, similar to a Flange Nut, except with a convex spherical radius underneath. The washer has a matching concave spherical radius. Made in USA.
Application Information
Material
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1215 Steel | Carburized-Hardened | Black Oxide | ✔ | ✔ | |
Parts Specification
| Thread Size | Hex (Inch) | A Diameter (Inch) | B (Inch) | C Diameter (Inch) | R (Inch) |
| 3/4-10 | 1-1/4" | 1-5/8" | 1-3/16" | 7/8" | 2-1/4" |
