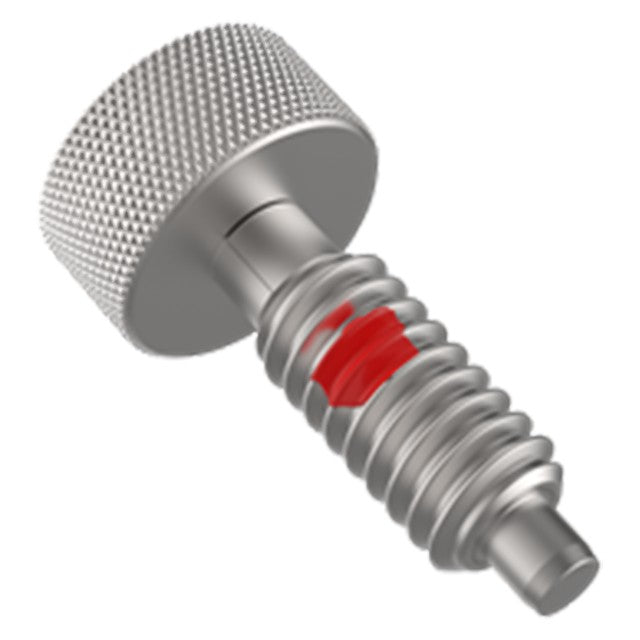

Hand-Retractable Plungers-Knurled Head
Spring-loaded plunger that locks in retracted position. To lock, pull knurled knob back and turn 90°. Slight taper on plunger tip for easy alignment. Made in USA.
Operation
Pull knob to retract
Turn 90° in either direction to lock
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger | 1215 Steel | Carburized-Hardened | Zinc Plated Clear Chromate | Yes | Yes |
| Body and Knurled Head | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
| Spring | 17-7PH Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter Nominal | B Diameter Actual | C (inch) | D (inch) | E (inch) | F Diameter (inch) |
| 5/16-18 | 1.5 lbs. | 6 lbs. | 5/32 | 0.156 | 3/16" | 5/8" | 9/32" | 5/8" |
