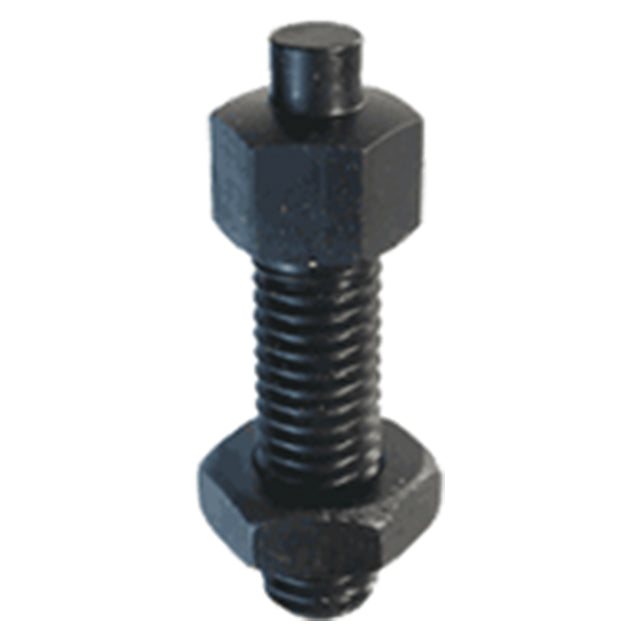

Clamp Rests
Rear support for Slotted-Heel Clamp Straps. The shoulder, which supports the Clamp Strap, has a large hex for easy adjustment and tightening. Jam Nut is included.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Rest Body | 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Jam Nut | Mild Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) |
| 1/2-13" | 11/32" | 1/4" | 1/2" | 11/16" | 3-5/8" |
