Serrated Adjustable Edge Clamps
These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding jaw with a hex wrench. Choice of high-nose or low-nose clamping jaw. V-groove in nose is useful for clamping round parts or corners.The adjustable (slotted) edge clamps are useful for mounting directly on a machine table. The slot is tapered to prevent the clamp from backing off under heavy forces (use two mounting screws on longer clamps).Made in USA.

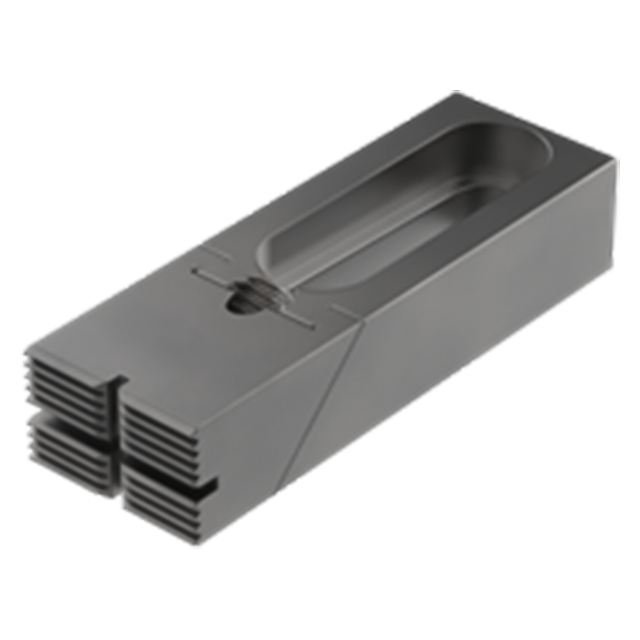

Low-Nose Version
The low-nose version shown here is ideal for thin parts and other applications where extra machining clearance is required.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body and Nose | 1018 Steel | Carburized-Hardened | Black Oxide | ✔ | ✔ |
| Clamping Screw | 4140 Steel | Heat Treated Rc 43-45 | Black Oxide | ✔ | ✔ |
Parts Specification
| Mounting Screw Size | A | B | C | G | H | J | K | L | M | Q |
| 1/2-13 | 4 | 7/8 | 1-1/2 | 1-1/4 | 1/2 | 5/8 | 5/16 | 3-3/16 | 1/4 | 2-1/4 |
