L Pins

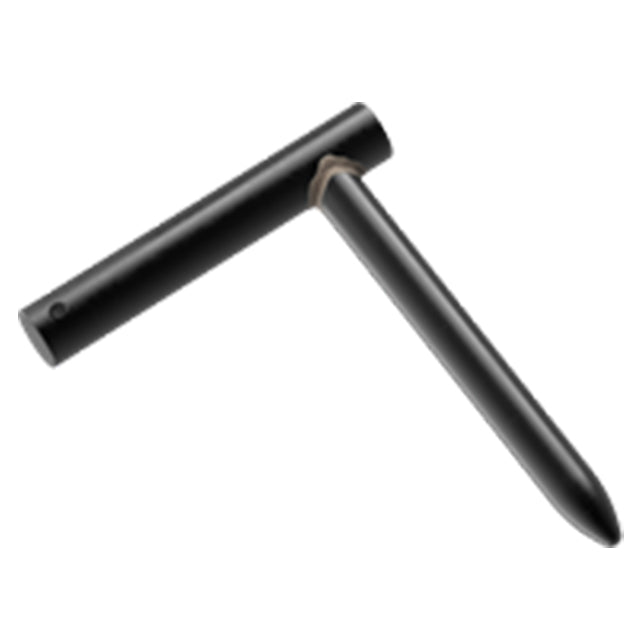

L Pins are removable locating pins, precision ground for accurately aligning holes. L shaped pins feature a body inset into a solid handle and silver soldered to create a sturdy assembly. L pin handle ends have a small hole for attaching an optional cable. Made in USA.
Application Information
L Pins can be used for accurately aligning two plates
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle | 1215 Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) |
| #30 | 0.1285" | 3" | 1-1/2" | 1/4" | 1/4" |
