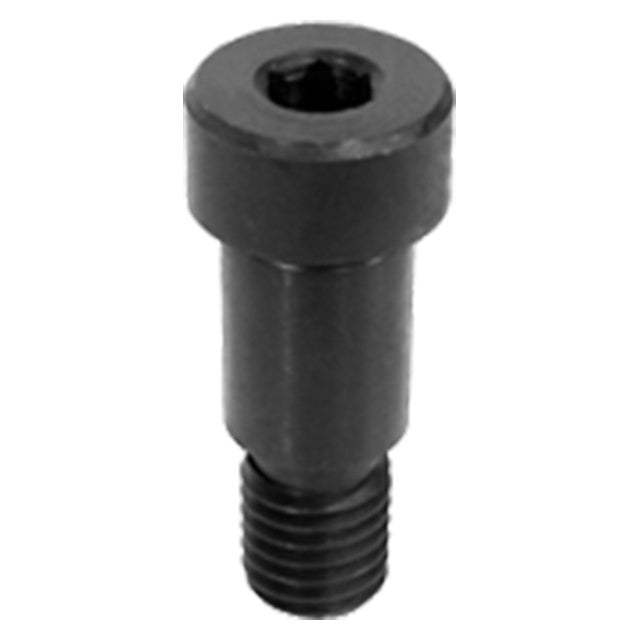

Shoulder Screws
Precision close-tolerance Shoulder Screw. The shoulder diameter is ground to a closer tolerance than ordinary stripper bolts, for better bearing action. Shoulder length is held to a plus tolerance to allow a nominal-size plate to swing freely underneath the head.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | Heat Treated Rc 32-43 | Black Oxide | Metric | Yes |
Parts Specification
| Shoulder Diamter Nominal (inch) | Shoulder Diamter Actual (inch) | A Thread (Inch) | B Nominal (inch) | B Actual (inch) | D (inch) | E (inch) | F Diamter (inch) | G (inch) |
| 3/4" | 0.7500" | 5/8-11" | 1" | 1.0000" | 1/2" | 7/8" | 1" | 3/8" |
