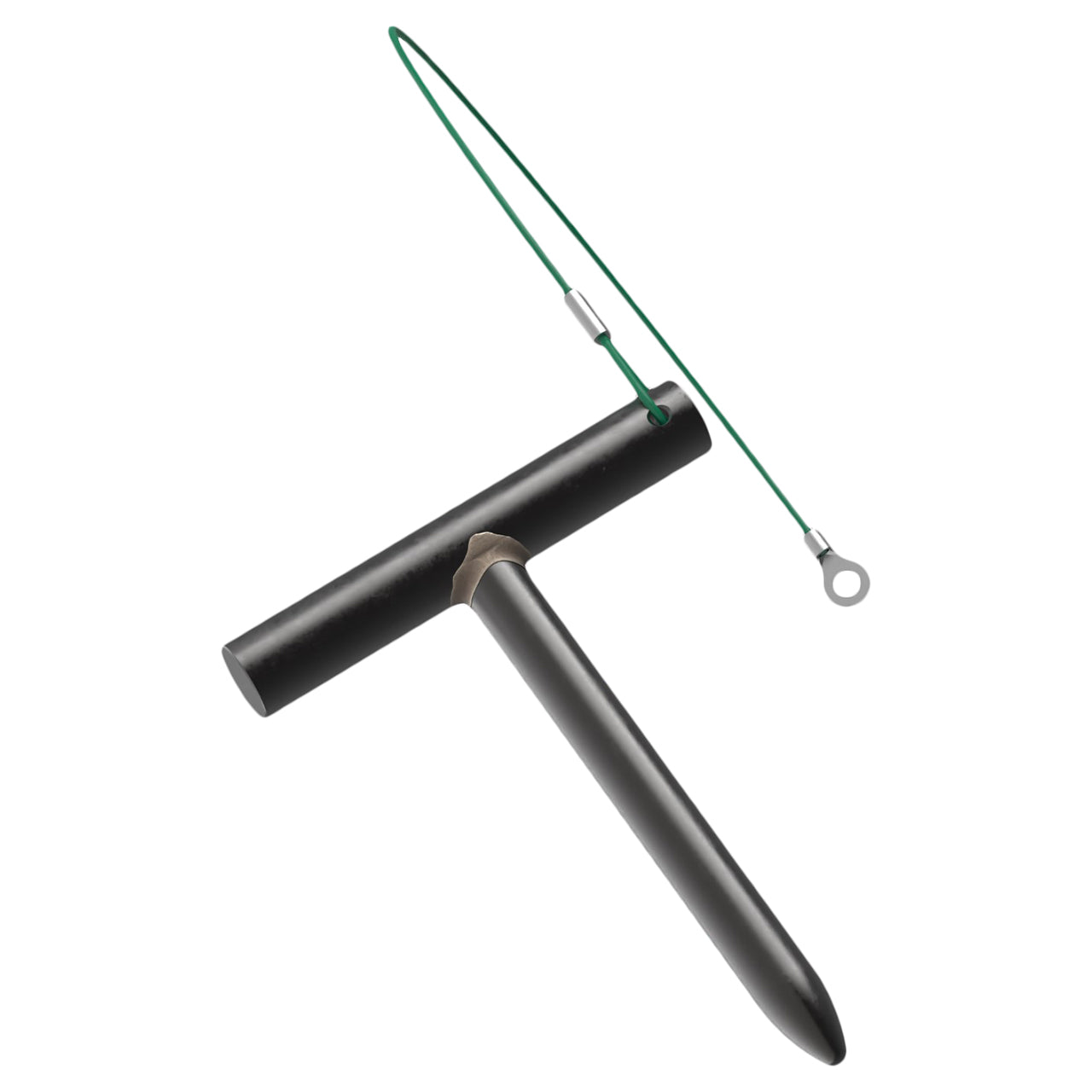

T Pins are removable locating pins, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Made in USA.
Application Information
T Pins can be used for accurately aligning two plates.
Optional Cable
To order T Pins with a standard cable assembly attached, add "-C" to the part number, e.g. CL-7-TP-C (#2 cable size, 10-12" long, with a terminal at the free end for a #10 or M5 attachment screw).
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH |
| Pin | 1215 Steel | Carburized-Hardened | Black Oxide |
| Handle | 1215 Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal | A Diameter Actual (inch) | B (inch) | C (inch) | D Diameter (inch) | E (inch) |
| #11 | .1910" | 6" | 2-1/2" | 5/16" | 1/4" |
